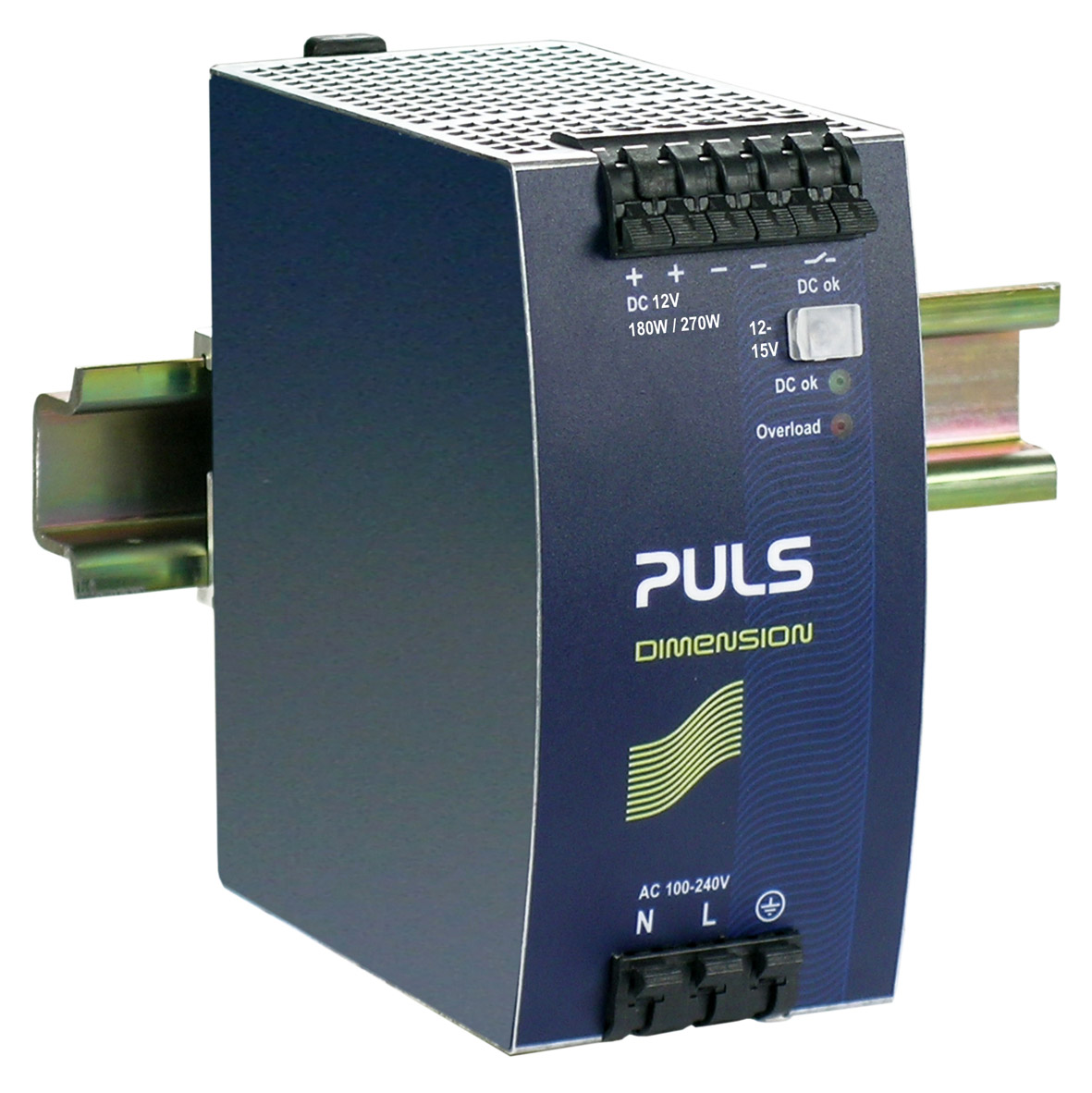

QS10.121
DIN rail power supplies for 1-phase system
12 V, 15 A
Datasheet
12 V, 15 A
| DC output | 12 - 15 Vdc |
|---|---|
| 15 - 13.5 A | |
| 180 W | |
| Input | AC 100 - 240 V (± 15 %) |
| DC 110 V - 150 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 60 x 124 x 117 mm |
| Weight | 930 g |
Input data
| AC Input voltage | AC 100 - 240 V (± 15 %) |
|---|---|
| DC Input voltage | DC 110 V - 150 V (-20 %/+25 %) |
| Harmonic correction | active |
| Power factor | 0.92 |
| Input inrush current limitation | active |
| Input inrush current | 4 A / 7 A |
| External input fuse recommendation | B-6 A / C-4 A |
Output data
| Nominal voltage | 12 Vdc |
|---|---|
| Adjustment range | 12 - 15 V |
| Output current range | 15 - 13.5 A |
| Output current | 13.5 A at 15 V |
| 15 A at 12 V | |
| Output power | 180 W |
| Power reserves | 50 % BonusPower |
| Derating | 5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 60 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 930 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| Efficiency, typ. | 91.8 % |
| Power losses, typ. | 16,1 W |
| MTBF SN 29500 @ 40 °C (h) | 631000 h |
| DC-OK signal | yes |
