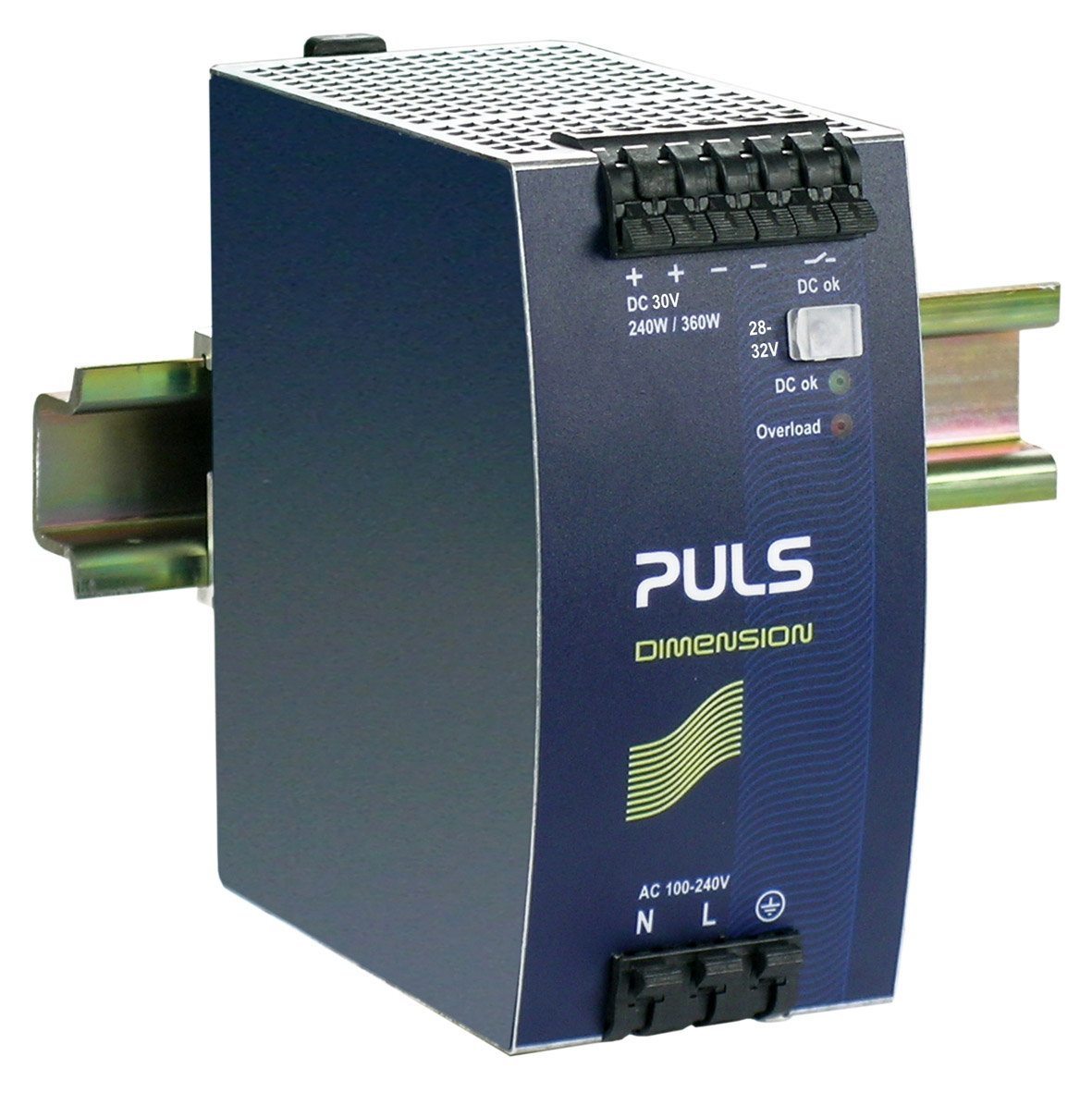

QS10.301
DIN rail power supplies for 1-phase system
30V, 8A
Datasheet
30V, 8A
| DC output | 28 - 32Vdc |
|---|---|
| 8.6 - 7.5A | |
| 240W | |
| Input | AC 100 - 240V (± 15%) |
| DC 110V - 150V (-20%/+25%) | |
| Dimensions (WxHxD) | 60 x 124 x 117mm |
| Weight | 900g |
Input data
| AC Input voltage | AC 100 - 240V (± 15%) |
|---|---|
| DC Input voltage | DC 110V - 150V (-20%/+25%) |
| Harmonic correction | active |
| Power factor | 0.92 |
| Input inrush current limitation | active |
| Input inrush current | 4A / 7A |
| External input fuse recommendation | B-6A / C-4A |
Output data
| Nominal voltage | 28Vdc |
|---|---|
| Adjustment range | 28 - 32V |
| Output current range | 8.6 - 7.5A |
| Output current | 7.5A at 32V |
| 8.6A at 28V | |
| Output power | 240W |
| Power reserves | 50% BonusPower |
| Derating | 6W/°C for >+60°C |
| Ripple and noise voltage max. | 50mVpp |
Overview
| Dimensions (WxHxD) | 60mm x 124mm x 117mm |
|---|---|
| Weight per unit (excl. packaging) | 900g |
| Mounting method | DIN rail |
| Operating temp. range | -25°C to 70°C |
| Connection method | Spring clamps |
| Efficiency, typ. | 93.5% |
| Power losses, typ. | 16.7W |
| MTBF SN 29500 @ 40°C (h) | 581000h |
| DC-OK signal | yes |
