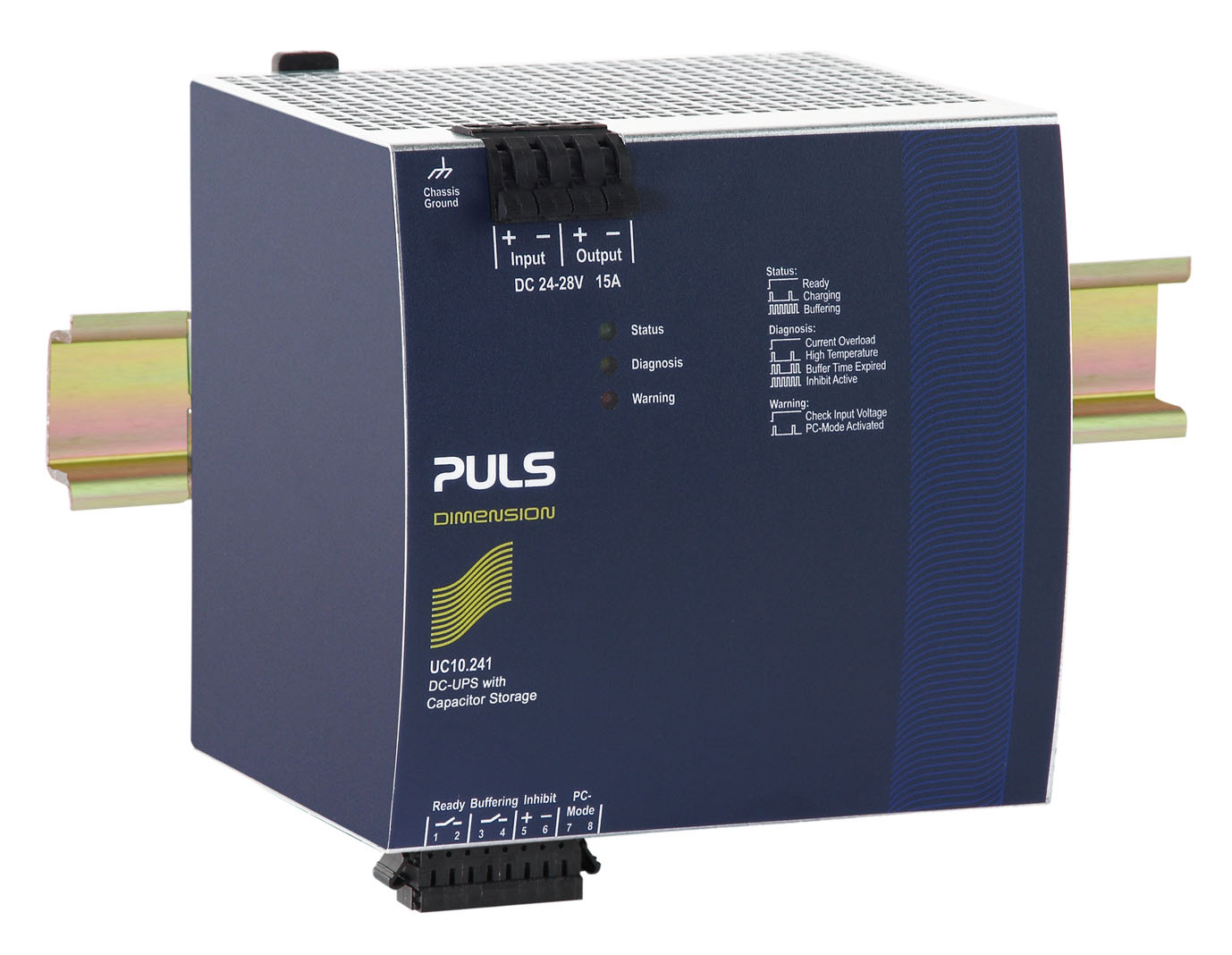

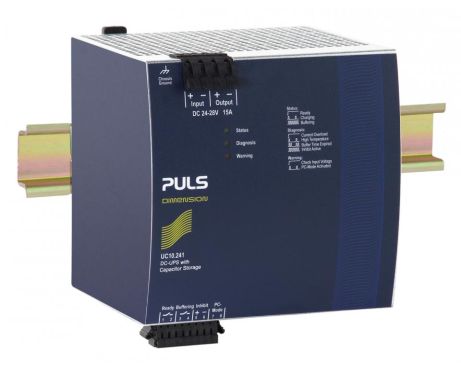

UC10.241
DC-UPS with capacitor storage
24 V, 15 A typ. 9s at 15A
Datasheet
24 V, 15 A typ. 9s at 15A
| DC output | DC 24 V |
|---|---|
| 15 A | |
| Input | DC 24 V |
| Dimensions (WxHxD) | 126 x 124 x 117 mm |
| Weight | 1150 g |
Input data
| DC Input voltage | DC 24 V |
|---|
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| 22.5 Vds | |
| Output current | 15 A |
| 15 A |
Buffering
| Storage element | Electrochemical double layer capacitors |
|---|
Overview
| Dimensions (WxHxD) | 126 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 1150 g |
| Mounting method | DIN rail |
| Connection method | Spring clamps |
| MTBF SN 29500 @ 40 °C (h) | 954000 h |
