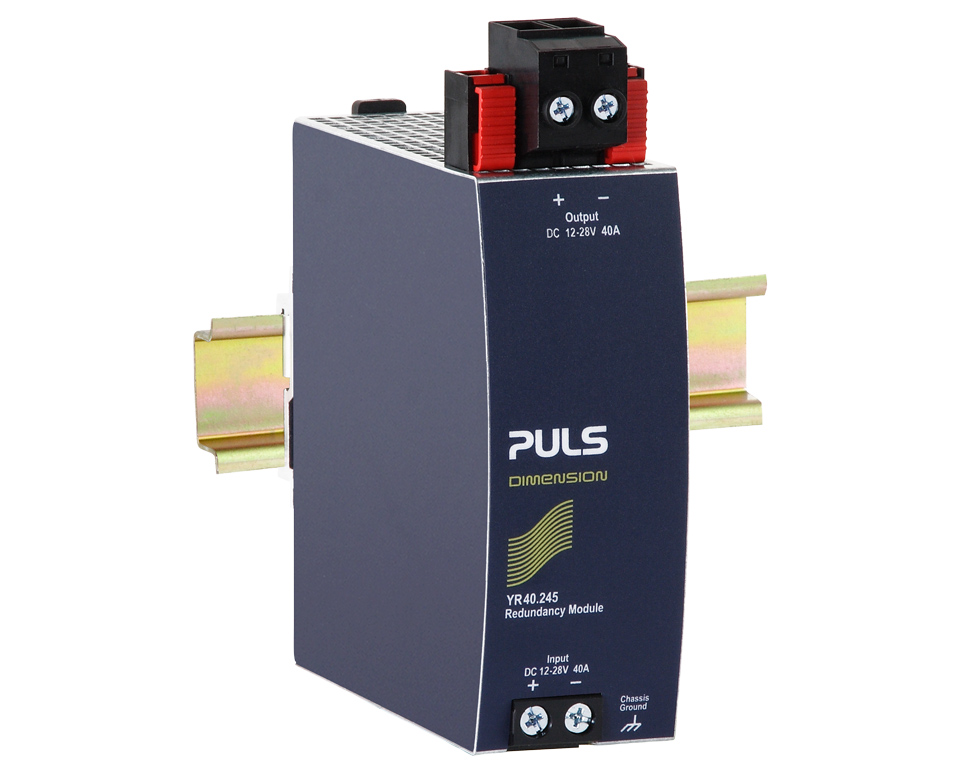

YR40.245

MOSFET redundancy module
24V, 40A
1x 40A input
Datasheet
DC output 12 - 28Vdc
40A
Input DC 12V - 28V
Dimensions (WxHxD) 46 x 124 x 127mm
Weight 340g
Compare

Input data

Input current 1 x 40A
Nominal current per input 40A
DC Input voltage DC 12V - 28V
Voltage drop 150mV

Output data

Output current range 40A
Output current 40A
Output current short circuit max. 22A
Derating 1W/°C for >+60°C

Overview

Dimensions (WxHxD) 46mm x 124mm x 127mm
Weight per unit (excl. packaging) 340g
Mounting method DIN rail
Operating temp. range -40°C to 70°C
Connection method Screw terminals
Power losses, typ. 6.2W
No-load losses, typ. 0.1W
MTBF SN 29500 @ 40°C (h) 6400000h
