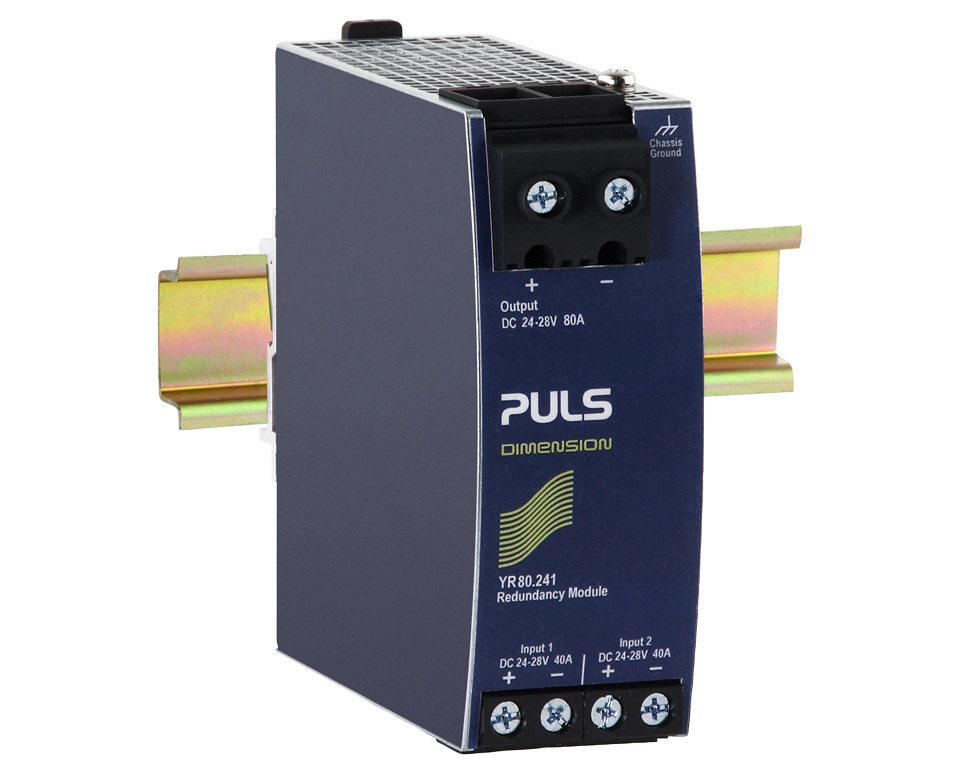

YR80.241
MOSFET redundancy module
24 V, 80 A 2x 40A input, for all power supplies
Datasheet
24 V, 80 A 2x 40A input, for all power supplies
| DC output | 12 - 28 Vdc |
|---|---|
| 80 A | |
| Input | DC 12 V - 28 V |
| Dimensions (WxHxD) | 46 x 124 x 127 mm |
| Weight | 440 g |
Input data
| Input current | 2 x 40 A |
|---|---|
| Nominal current per input | 40 A |
| DC Input voltage | DC 12 V - 28 V |
| Voltage drop | 49 mV |
Output data
| Output current range | 80 A |
|---|---|
| Output current | 80 A |
| Output current short circuit max. | 130 A |
Overview
| Dimensions (WxHxD) | 46 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 440 g |
| Mounting method | DIN rail |
| Operating temp. range | -40 °C to 70 °C |
| Connection method | Screw terminals |
| Power losses, typ. | 2.7 W |
| No-load losses, typ. | 0.7 W |
| MTBF SN 29500 @ 40 °C (h) | 2100000 h |
