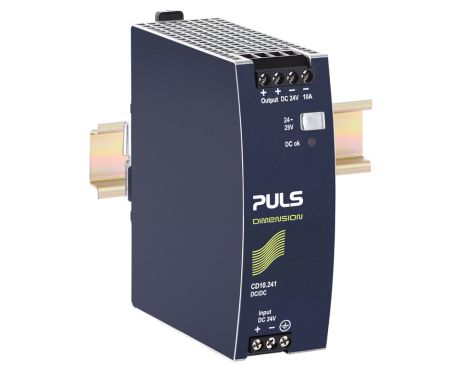

CD10.241

DC/DC converter
24V, 10A
Datasheet
DC output 24 - 28Vdc
10 - 8.6A
240W
Input DC 24V (-25%/+46%)
Dimensions (WxHxD) 42 x 124 x 117mm
Weight 500g
Compare
Product status: Stock item

Input data

DC Input voltage DC 24V (-25%/+46%)

Output data

Nominal voltage 24Vdc
Adjustment range 24 - 28V
Output current range 10 - 8.6A
Output current 8.6A at 28V
10A at 24V
Output power 240W
Power reserves 20% Power Boost
Ripple and noise voltage max. 50mVpp

Overview

Dimensions (WxHxD) 42mm x 124mm x 117mm
Weight per piece (excl. packaging) 500g
Operating temp. range -25°C to 70°C
Mounting method DIN rail
Efficiency, typ. 94.2%
Power losses, typ. 14.8W , 14.8W
MTBF SN 29500 @ 40°C (h) 731000h
Connection method Screw terminals
