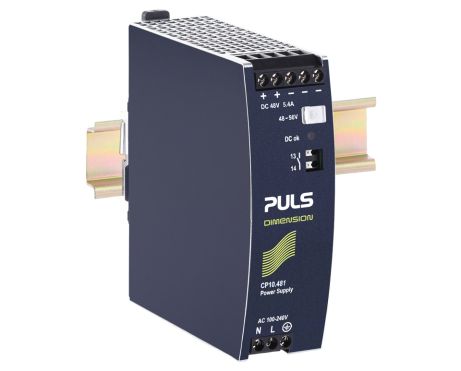

CP10.481

DIN rail power supplies for 1-phase system
48V, 5.4A
Datasheet
DC output 48 - 56Vdc
5.4 - 4.6A
260W
Input AC 100 - 240V (± 10%)
DC 110V - 150V (± 20%)
Dimensions (WxHxD) 39 x 124 x 117mm
Weight 600g
Compare
Product status: Stock item

Input data

AC Input voltage AC 100 - 240V (± 10%)
DC Input voltage DC 110V - 150V (± 20%)
Harmonic correction active
Power factor 0.98
Input inrush current limitation active
Input inrush current 6A / 9A
External input fuse recommendation B-6A / C-6A

Output data

Nominal voltage 48Vdc
Adjustment range 48 - 56V
Output current range 5.4 - 4.6A
Output current 4.6A at 56V
5.4A at 48V
Output power 260W
Power reserves 20% Power Boost
Derating 6.5W/°C for >+60°C
Ripple and noise voltage max. 50mVpp

Overview

Dimensions (WxHxD) 39mm x 124mm x 117mm
Weight per piece (excl. packaging) 600g
Operating temp. range -25°C to 70°C
Mounting method DIN rail
Efficiency, typ. 95.5%
Power losses, typ. 12.3W
Connection method Screw terminals
DC-OK signal yes
