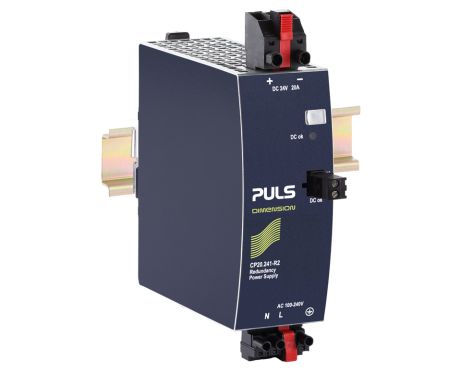

24V, 20A hot swappable
|Input||AC 100 - 240V (-15%/+10%)|
|DC 110V - 150V (± 20%)|
|Dimensions (WxHxD)||48 x 124 x 127mm|
|AC Input voltage||AC 100 - 240V (-15%/+10%)|
|DC Input voltage||DC 110V - 150V (± 20%)|
|Input inrush current limitation||active|
|Input inrush current||10A / 4.5A|
|External input fuse recommendation||B-10A / C-10A|
|Output current range||20A|
|Output current||20A at 24V|
|Power reserves||20% Power Boost|
|Derating||12W/°C for >+60°C|
|Ripple and noise voltage max.||50mVpp|
|Dimensions (WxHxD)||48mm x 124mm x 127mm|
|Weight per unit (excl. packaging)||850g|
|Mounting method||DIN rail|
|Operating temp. range||-40°C to 70°C|
|Connection method||Plug connector|
|Power losses, typ.||24.2W|
|MTBF SN 29500 @ 40°C (h)||543000h|
