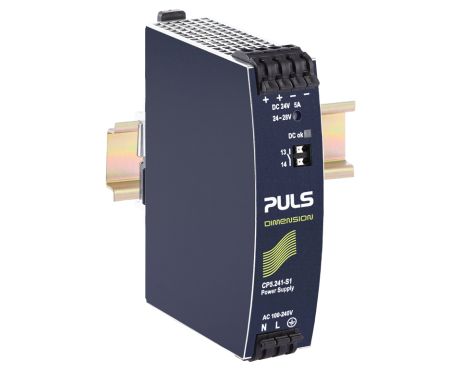

CP5.241-S1
DIN rail power supplies for 1-phase system
24 V, 5 A spring clamp terminals
Datasheet
24 V, 5 A spring clamp terminals
| DC output | 24 - 28 Vdc |
|---|---|
| 5 - 4.3 A | |
| 120 W | |
| Input | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 150 V (± 20 %) | |
| Dimensions (WxHxD) | 32 x 124 x 102 mm |
| Weight | 440 g |
Input data
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC Input voltage | DC 110 V - 150 V (± 20 %) |
| Harmonic correction | active |
| Power factor | 0.91 |
| Input inrush current limitation | active |
| Input inrush current | 4 A / 4 A |
| External input fuse recommendation | B-6 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 5 - 4.3 A |
| Output current | 4.3 A at 28 V |
| 5 A at 24 V | |
| Output power | 120 W |
| Power reserves | 20 % Power Boost |
| Derating | 3 W/°C for >60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 440 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| Efficiency, typ. | 94.3 % |
| Power losses, typ. | 7.3 W |
| MTBF SN 29500 @ 40 °C (h) | 867000 h |
| DC-OK signal | yes |
