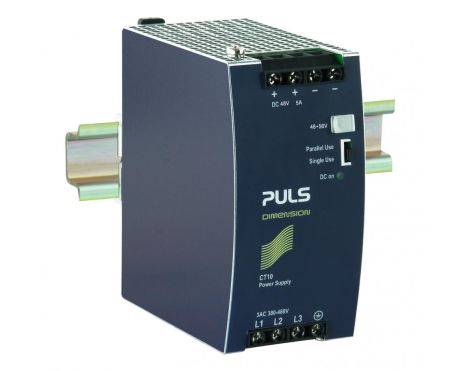

CT10.481

DIN rail power supplies for 3-phase system
48V, 5A
Datasheet
DC output 48 - 56Vdc
5 - 4.3A
240W
Input AC 380 - 480V (-15%/+20%)
Dimensions (WxHxD) 62 x 124 x 117mm
Weight 750g
Compare
Product status: Stock item

Input data

AC Input voltage AC 380 - 480V (-15%/+20%)
Harmonic correction active
Power factor 0.53
Input inrush current limitation active
Input inrush current 4A / 4A
External input fuse recommendation B-6A / C-3A

Output data

Nominal voltage 48Vdc
Adjustment range 48 - 56V
Output current range 5 - 4.3A
Output current 4.3A at 56V
5A at 48V
Output power 240W
Power reserves 20% Power Boost
Derating 6W/°C for >+60°C
Ripple and noise voltage max. 100mVpp

Overview

Dimensions (WxHxD) 62mm x 124mm x 117mm
Weight per piece (excl. packaging) 750g
Operating temp. range -25°C to 70°C
Mounting method DIN rail
Efficiency, typ. 92.8%
Power losses, typ. 18.6W , 18.6W
MTBF SN 29500 @ 40°C (h) 1051000h
Connection method Screw terminals
