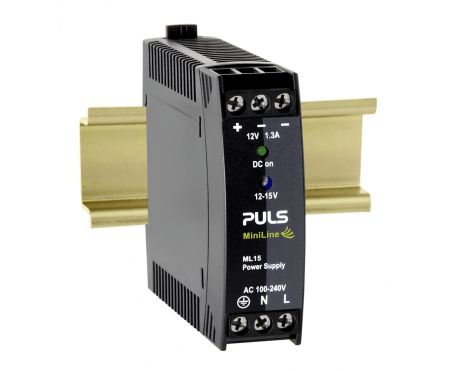

ML15.121

DIN rail power supplies for 1-phase system
12V, 1.3A
Datasheet
DC output 12 - 15Vdc
1.3 - 1A
15W
Input AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
Dimensions (WxHxD) 23 x 75 x 91mm
Weight 130g
Compare
Product status: Stock item

Input data

AC Input voltage AC 100 - 240V (-15%/+10%)
DC Input voltage DC 110V - 300V (-20%/+25%)
Power factor 0.44
Input inrush current limitation NTC
Input inrush current 16A / 31A
External input fuse recommendation B-6A / C-3A

Output data

Nominal voltage 12Vdc
Adjustment range 12 - 15V
Output current range 1.3 - 1A
Output current 1A at 15V
1.3A at 12V
Output power 15W
Derating 0.4W/°C for >+60°C
Ripple and noise voltage max. 75mVpp

Overview

Dimensions (WxHxD) 23mm x 75mm x 91mm
Weight per piece (excl. packaging) 130g
Mounting method DIN rail
Efficiency, typ. 82.5%
Power losses, typ. 3.2W
MTBF SN 29500 @ 40°C (h) 3811000h
Connection method Screw terminals
