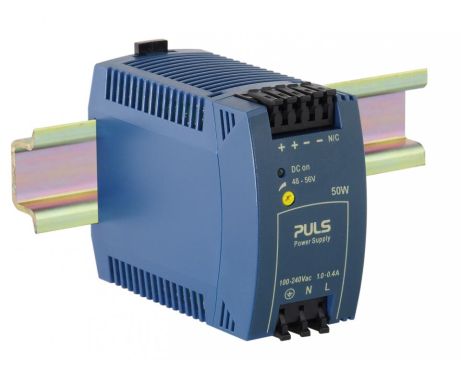

ML50.105
DIN rail power supplies for 1-phase system
48 V, 1.1 A
Datasheet
48 V, 1.1 A
| DC output | 48 - 56 Vdc |
|---|---|
| 1.1 A | |
| 50 W | |
| Input | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 45 x 75 x 91 mm |
| Weight | 240 g |
Input data
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC Input voltage | DC 110 V - 300 V (-20 %/+25 %) |
| Power factor | 0.52 |
| Input inrush current limitation | NTC |
| Input inrush current | 17 A / 35 A |
| External input fuse recommendation | B-10 A / C-6 A |
Output data
| Nominal voltage | 48 Vdc |
|---|---|
| Adjustment range | 48 - 56 V |
| Output current range | 1.1 A |
| Output current | 56 V |
| 1.1 A at 48 V | |
| Output power | 50 W |
| Derating | 1.3 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 45 mm x 75 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 240 g |
| Mounting method | DIN rail |
| Connection method | Spring clamps |
| Efficiency, typ. | 90 % |
| Power losses, typ. | 6 W |
| MTBF SN 29500 @ 40 °C (h) | 600000 h |
