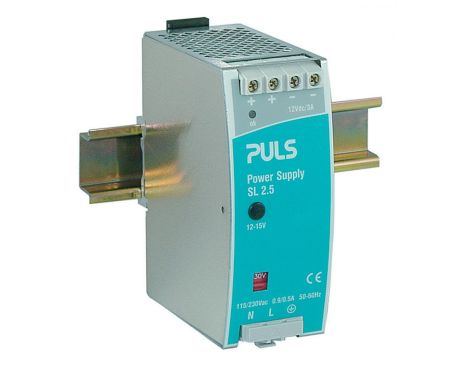

SL2.103
DIN rail power supplies for 1-phase system
12 V, 3 A
Datasheet
12 V, 3 A
| DC output | 12 - 15 Vdc |
|---|---|
| 3 - 2.7 A | |
| 40 W | |
| Input | AC 100 - 120 / 200 - 240 V |
| DC 300 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 49 x 124 x 102 mm |
| Weight | 460 g |
Input data
| AC Input voltage | AC 100 - 120 / 200 - 240 V |
|---|---|
| DC Input voltage | DC 300 V (-20 %/+25 %) |
Output data
| Nominal voltage | 12 Vdc |
|---|---|
| Adjustment range | 12 - 15 V |
| Output current range | 3 - 2.7 A |
| Output current | 2.7 A at 15 V |
| 3 A at 12 V | |
| Output power | 40 W |
| Ripple and noise voltage max. | 25 mVpp |
Overview
| Dimensions (WxHxD) | 49 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 460 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
