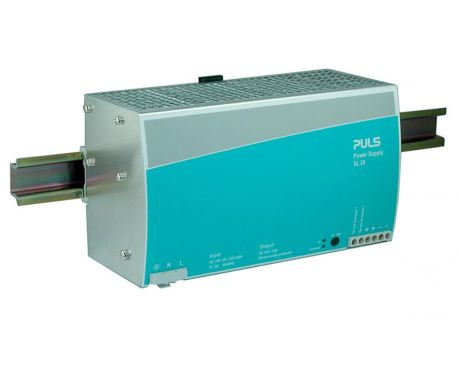

SL20.115
DIN rail power supplies for 1-phase system
24 V, 20 A with remote shut-down input
Datasheet
24 V, 20 A with remote shut-down input
| DC output | 24 - 28 Vdc |
|---|---|
| 20 - 17.1 A | |
| 480 W | |
| Input | AC 100 - 120 / 220 - 240 V |
| Dimensions (WxHxD) | 220 x 124 x 102 mm |
| Weight | 2500 g |
Input data
| AC Input voltage | AC 100 - 120 / 220 - 240 V |
|---|
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 20 - 17.1 A |
| Output current | 17.1 A at 28 V |
| 20 A at 24 V | |
| Output power | 480 W |
Overview
| Dimensions (WxHxD) | 220 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 2500 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
