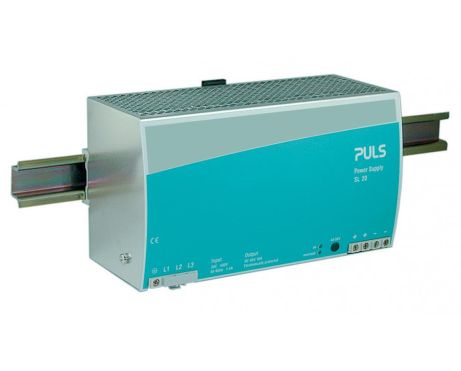

SL20.303

DIN rail power supplies for 3-phase system
48 V, 10 A
Datasheet
DC output 48 - 56 Vdc
10 - 8.6 A
480 W
Input AC 400 V
DC 600 V (-25 %/+17 %)
Dimensions (WxHxD) 220 x 124 x 102 mm
Weight 1800 g
Compare

Input data

AC Input voltage AC 400 V
DC Input voltage DC 600 V (-25 %/+17 %)

Output data

Nominal voltage 48 Vdc
Adjustment range 48 - 56 V
Output current range 10 - 8.6 A
Output current 8.6 A at 56 V
10 A at 48 V
Output power 480 W
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 220 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 1800 g
Mounting method DIN rail
Connection method Screw terminals
