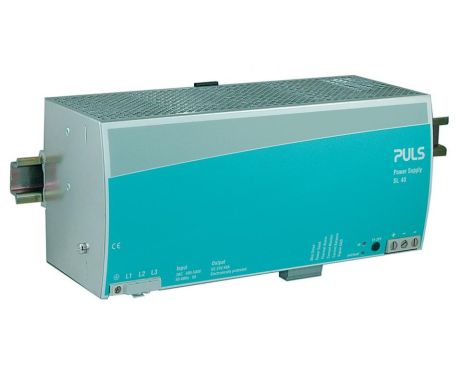

SL40.301
DIN rail power supplies for 3-phase system
24 V, 40 A various signals included
Datasheet
24 V, 40 A various signals included
| DC output | 24 - 28 Vdc |
|---|---|
| 40 - 34.3 A | |
| 960 W | |
| Input | AC 400 - 500 V |
| Dimensions (WxHxD) | 275 x 124 x 117 mm |
| Weight | 3300 g |
Input data
| AC Input voltage | AC 400 - 500 V |
|---|
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 40 - 34.3 A |
| Output current | 34.3 A at 28 V |
| 40 A at 24 V | |
| Output power | 960 W |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 275 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 3300 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
