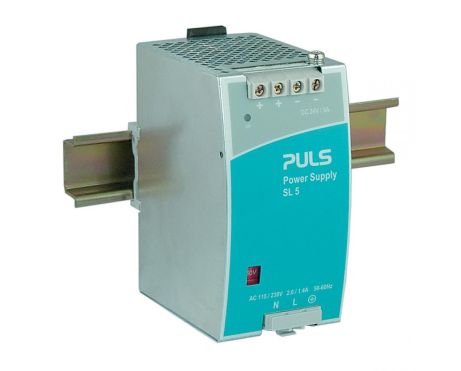

SL5.100

DIN rail power supplies for 1-phase system
24V, 5A
Datasheet
DC Output 24 - 24Vdc
5A
120W
Input AC 100 - 120 / 200 - 240V
DC 300V (-20%/+25%)
Size (WxHxD) 64 x 124 x 102mm
Weight 620g
Compare
Product Status: Discontinued

This product is no longer available.

Input Data

AC-Input Voltage AC 100 - 120 / 200 - 240V
DC-Input Voltage DC 300V (-20%/+25%)

Output Data

Nominal voltage 24Vdc
Adjustment Range 24 - 24V
Output Current Range 5A
Output Current 24V
5A at 24V
Output Power 120W
Ripple and noise voltage max. 50mVpp

Overview

Size (WxHxD) 64mm x 124mm x 102mm
Weight per piece (excl. packaging) 620g
Mounting Method DIN rail
Connection method Screw terminals

Alternative products
