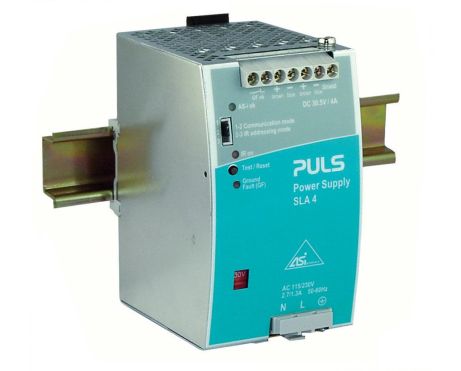

SLA4.100

AS-Interface power supply
30.5V, 4A
Datasheet
DC Output 30.5Vdc
4A
Input AC 100 - 120 / 220 - 240V (-15%/+10%)
Size (WxHxD) 65 x 124 x 102mm
Weight 620g
Compare
Product Status:

Input Data

AC-Input Voltage AC 100 - 120 / 220 - 240V (-15%/+10%)
Power Factor 0.53
Input Inrush Current Limitation NTC

Output Data

Nominal voltage 30.5Vdc
Adjustment Range 30.5V
Output Current Range 4A
Output Current 4A at 30.5V
Ripple and noise voltage max. 50mVpp

Overview

Size (WxHxD) 65mm x 124mm x 102mm
Weight per piece (excl. packaging) 620g
Derating 3W/°C at >+60°C
Mounting Method DIN rail
Efficiency, typ. 88%
Power losses, typ. 13.5W
MTBF SN 29500 @ 40°C (h) 1222000h
Connection method Screw terminals
