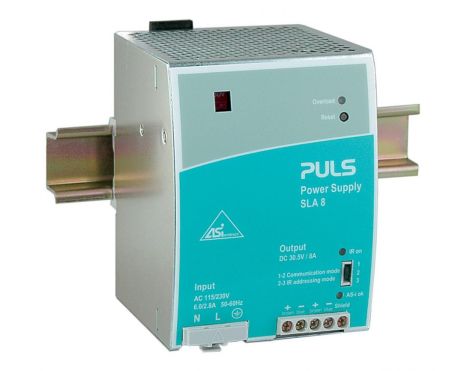

SLA8.100
AS-Interface power supply
30.5V, 8A
Datasheet
30.5V, 8A
| DC output | 30.6Vdc |
|---|---|
| 8A | |
| Input | AC 100 - 120 / 220 - 240V (-15%/+10%) |
| Dimensions (WxHxD) | 91 x 124 x 102mm |
| Weight | 890g |
Input data
| AC Input voltage | AC 100 - 120 / 220 - 240V (-15%/+10%) |
|---|---|
| Power factor | 0.48 |
| Input inrush current limitation | active |
Output data
| Nominal voltage | 30.6Vdc |
|---|---|
| Adjustment range | 30.6V |
| Output current range | 8A |
| Output current | 8A at 30.6V |
| Derating | 6W/°C for >+60°C |
| Ripple and noise voltage max. | 50mVpp |
Overview
| Dimensions (WxHxD) | 91mm x 124mm x 102mm |
|---|---|
| Weight per unit (excl. packaging) | 890g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
| Efficiency, typ. | 92% |
| Power losses, typ. | 21.2W |
| MTBF SN 29500 @ 40°C (h) | 869000h |
