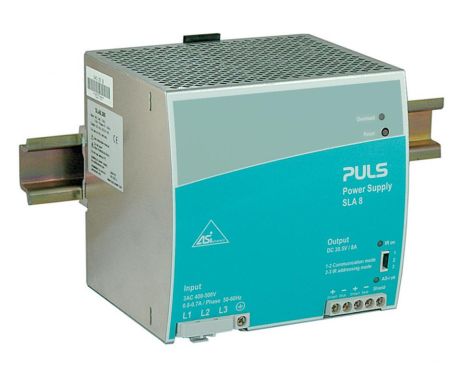

AS-Interface power supply
30.5V, 8A
DC output 30.5Vdc
Input AC 400 - 500V (± 15%)
Dimensions (WxHxD) 129 x 124 x 117mm
Weight 1160g
Product status: Discontinued

This product is no longer available.

Input data

AC Input voltage AC 400 - 500V (± 15%)
Harmonic correction PFC
Power factor 0.5
Input inrush current limitation NTC

Output data

Nominal voltage 30.5Vdc
Adjustment range 30.5V
Output current range 8A
Output current 8A at 30.5V
Derating 6W/°C for >+60°C
Ripple and noise voltage max. 50mVpp


Dimensions (WxHxD) 129mm x 124mm x 117mm
Weight per piece (excl. packaging) 1160g
Mounting method DIN rail
Efficiency, typ. 91.5%
Power losses, typ. 22.5W
MTBF SN 29500 @ 40°C (h) 1220000h
Connection method Screw terminals
