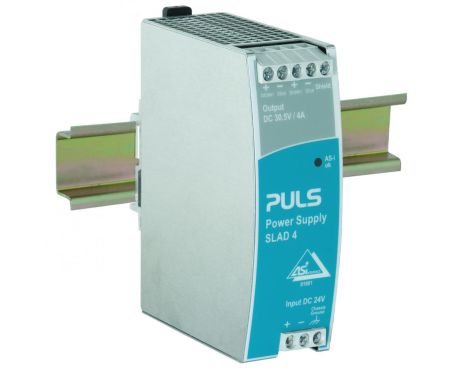

SLAD4.100

AS-Interface power supply
30.5V, 4A
DC/DC converter
Datasheet
DC Output 30.6Vdc
4A
Input DC 24V (-25%/+35%)
Size (WxHxD) 40 x 124 x 102mm
Weight 500g
Compare
Product Status: Stock item

Input Data

DC-Input Voltage DC 24V (-25%/+35%)
Input Inrush Current Limitation active

Output Data

Nominal voltage 30.6Vdc
Adjustment Range 30.6V
Output Current Range 4A
Output Current 4A at 30.6V
Ripple and noise voltage max. 50mVpp

Overview

Size (WxHxD) 40mm x 124mm x 102mm
Weight per piece (excl. packaging) 500g
Oper. temperature range -25°C to 70°C
Derating 3W/°C at >+60°C
Mounting Method DIN rail
Efficiency, typ. 90.5%
Power losses, typ. 12.7W
MTBF SN 29500 @ 40°C (h) 1247000h
Connection method Screw terminals
