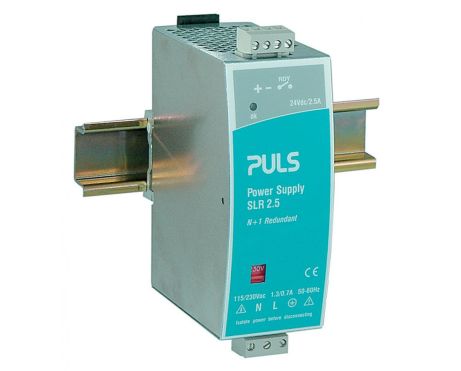

SLR2.100

Power supply with integrated decoupling function
24V, 2.5A
decoupling diode for redundancy use included
Datasheet
DC output 24Vdc
2.5A
60W
Input AC 100 - 120 / 210 - 240V
Dimensions (WxHxD) 49 x 124 x 102mm
Weight 470g
Compare
Product status: Discontinued

This product is no longer available.

Input data

AC Input voltage AC 100 - 120 / 210 - 240V

Output data

Nominal voltage 24Vdc
Adjustment range 24V
Output current range 2.5A
Output current 2.5A at 24V
Output power 60W
Derating 1.5W/°C for >+60°C
Ripple and noise voltage max. 30mVpp

Overview

Dimensions (WxHxD) 49mm x 124mm x 102mm
Weight per piece (excl. packaging) 470g
Mounting method DIN rail
Efficiency, typ. 86.5%
Power losses, typ. 9.4W
MTBF SN 29500 @ 40°C (h) 700000h
Connection method Plug connector
