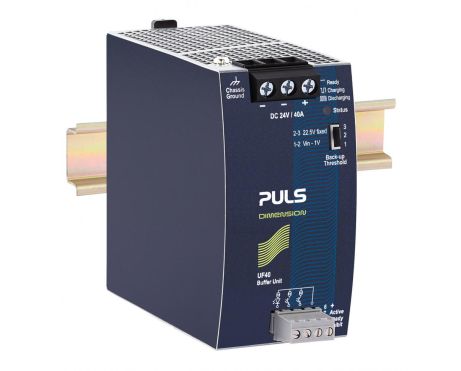

UF40.241
Buffer module
24V, 40A electrolytic capacitor buffer module typ. 160ms at 40A
Datasheet
24V, 40A electrolytic capacitor buffer module typ. 160ms at 40A
| DC output | DC 24V |
|---|---|
| 40A | |
| Input | DC 24V (-20%/+25%) |
| Dimensions (WxHxD) | 64 x 124 x 142mm |
| Weight | 1040g |
Input data
| DC Input voltage | DC 24V (-20%/+25%) |
|---|
Output data
| Nominal voltage | 24Vdc |
|---|---|
| Output current | 40A |
Buffering
| Storage element | Electrolytic capacitors |
|---|
Overview
| Dimensions (WxHxD) | 64mm x 124mm x 142mm |
|---|---|
| Weight per unit (excl. packaging) | 1040g |
| Mounting method | DIN rail |
| Operating temp. range | -25°C to 70°C |
| Connection method | Screw terminals |
| MTBF SN 29500 @ 40°C (h) | 2114000h |
