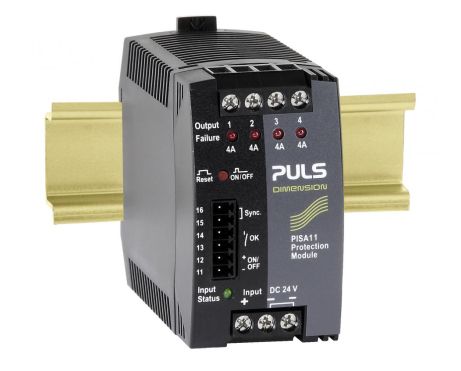

PISA11.404
Module de protection
24V, 16A 4-channel protection module; Outputs: 4x4A
Fiche technique
24V, 16A 4-channel protection module; Outputs: 4x4A
| DC Sortie | DC 24V |
|---|---|
| 4A , 4A , 4A , 4A | |
| Entrée | DC 18V - 30V |
| Dimensions (LxHxP) | 45 x 75 x 91mm |
| Poids | 120g |
Statut du produit:
Article en stock
Données d’entrée
| Tension d’entrée DC | DC 18V - 30V |
|---|---|
| DC Input Current at no load, typ. | 43mA |
| Required Input Voltage for turning on the outputs, typ | 21Vdc |
| Turn-on Delay of Outputs | 270ms |
| Niveau de protection de tension d'entrée (min./max.) | 21 - 21Vdc |
Données de sortie
| Plage de réglage | 24 - 28V |
|---|---|
| Courant de sortie | 4A , 4A , 4A , 4A |
| Courant de sortie (les 4 sorties dans leur ensemble) | 16A |
| Limitation de courant de sortie min/max. | 16 / 23A |
| Temps d'arrêt en cas de court-circuit, typ. | 10ms |
Vue d’ensemble
| Dimensions (LxHxP) | 45mm x 75mm x 91mm |
|---|---|
| Poids par pièce (conditionnement exclu) | 120g |
| Plage de température opérationnelle | -25 °C à 70 °C |
| Méthode de montage | Rail DIN |
| Perte de puissance, typ. | 1.8W |
| Pertes sans charge, typ. | 1.0W |
| MTBF SN 29500 @ 40 °C (h) | 2114000h |
| Mode de connexion | Bornes à vis |
