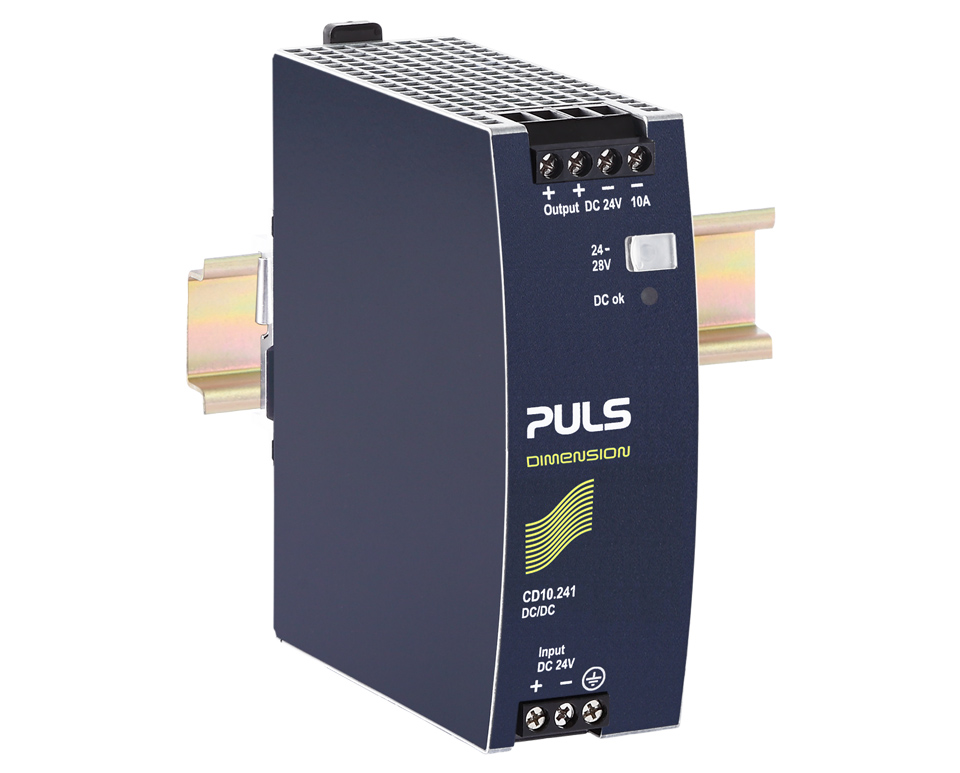

CD10.241
DC/DC converter
24V, 10A
Datasheet
24V, 10A
| DC output | 24 - 28Vdc |
|---|---|
| 10 - 8.6A | |
| 240W | |
| Input | DC 24V (-25%/+46%) |
| Dimensions (WxHxD) | 42 x 124 x 117mm |
| Weight | 500g |
Input data
| DC Input voltage | DC 24V (-25%/+46%) |
|---|
Output data
| Nominal voltage | 24Vdc |
|---|---|
| Adjustment range | 24 - 28V |
| Output current range | 10 - 8.6A |
| Output current | 8.6A at 28V |
| 10A at 24V | |
| Output power | 240W |
| Power reserves | 20% Power Boost |
| Ripple and noise voltage max. | 50mVpp |
Overview
| Dimensions (WxHxD) | 42mm x 124mm x 117mm |
|---|---|
| Weight per unit (excl. packaging) | 500g |
| Mounting method | DIN rail |
| Operating temp. range | -25°C to 70°C |
| Connection method | Screw terminals |
| Efficiency, typ. | 94.2% |
| Power losses, typ. | 14.8W 14.8W |
| MTBF SN 29500 @ 40°C (h) | 731000h |
