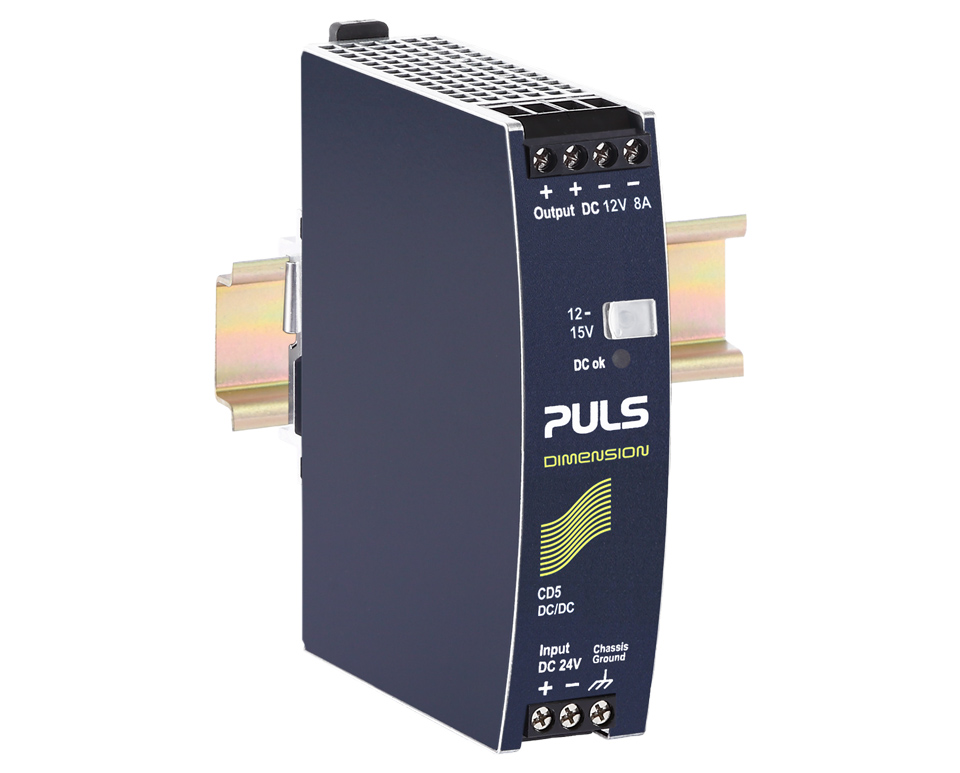

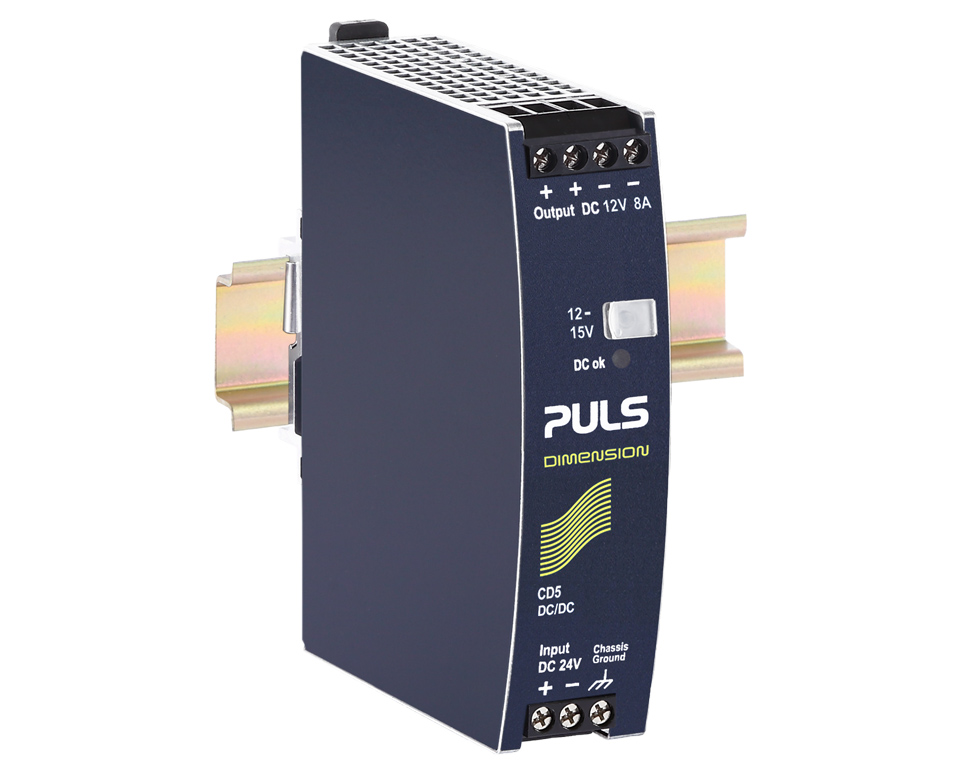

CD5.121
DC/DC converter
12 V, 8 A
Datasheet
12 V, 8 A
| DC output | 12 - 15 Vdc |
|---|---|
| 8 - 6.4 A | |
| 96 W | |
| Input | DC 24 V (-25 %/+35 %) |
| Dimensions (WxHxD) | 32 x 124 x 102 mm |
| Weight | 425 g |
Input data
| DC Input voltage | DC 24 V (-25 %/+35 %) |
|---|
Output data
| Nominal voltage | 12 Vdc |
|---|---|
| Adjustment range | 12 - 15 V |
| Output current range | 8 - 6.4 A |
| Output current | 6.4 A at 15 V |
| 8 A at 12 V | |
| Output power | 96 W |
| Power reserves | 20 % Power Boost |
| Derating | 2.5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 75 mVpp |
Overview
| Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 425 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 88.2 % |
| Power losses, typ. | 12.8 W |
| MTBF SN 29500 @ 40 °C (h) | 1161000 h |
