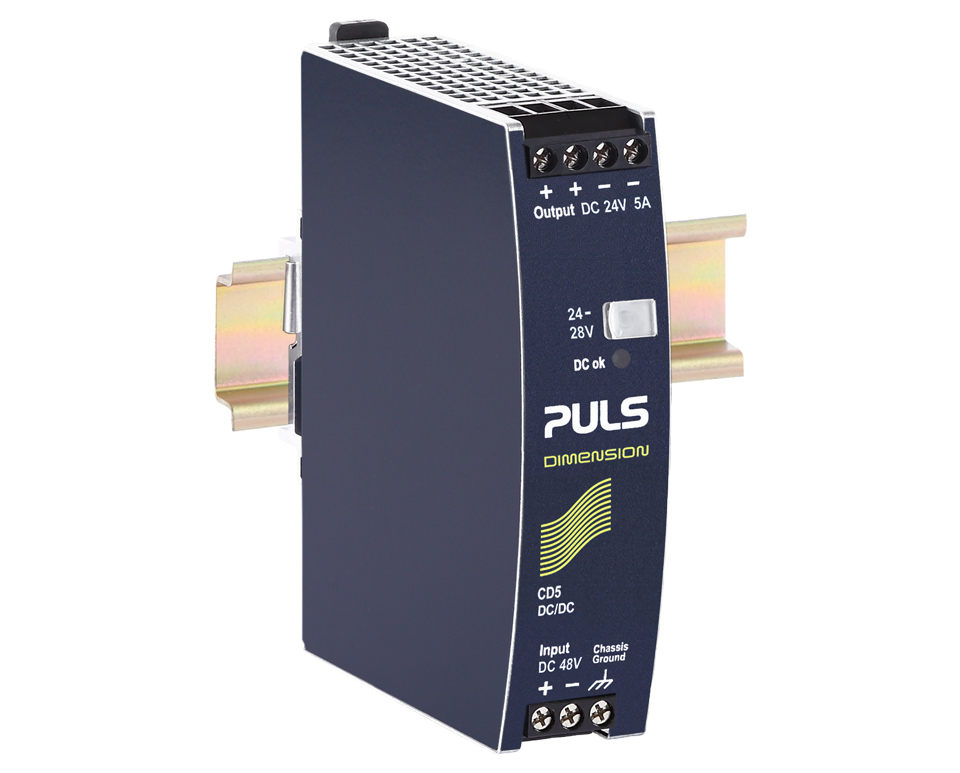

CD5.242
DC/DC converter
24 V, 5 A
Datasheet
24 V, 5 A
| DC output | 24 - 28 Vdc |
|---|---|
| 5 - 4.3 A | |
| 120 W | |
| Input | DC 48 V (± 25 %) |
| Dimensions (WxHxD) | 32 x 124 x 102 mm |
| Weight | 425 g |
Input data
| DC Input voltage | DC 48 V (± 25 %) |
|---|
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 5 - 4.3 A |
| Output current | 4.3 A at 28 V |
| 5 A at 24 V | |
| Output power | 120 W |
| Power reserves | 20 % Power Boost |
| Derating | 3 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 425 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 90.3 % |
| Power losses, typ. | 12.9 W |
| MTBF SN 29500 @ 40 °C (h) | 951000 h |
