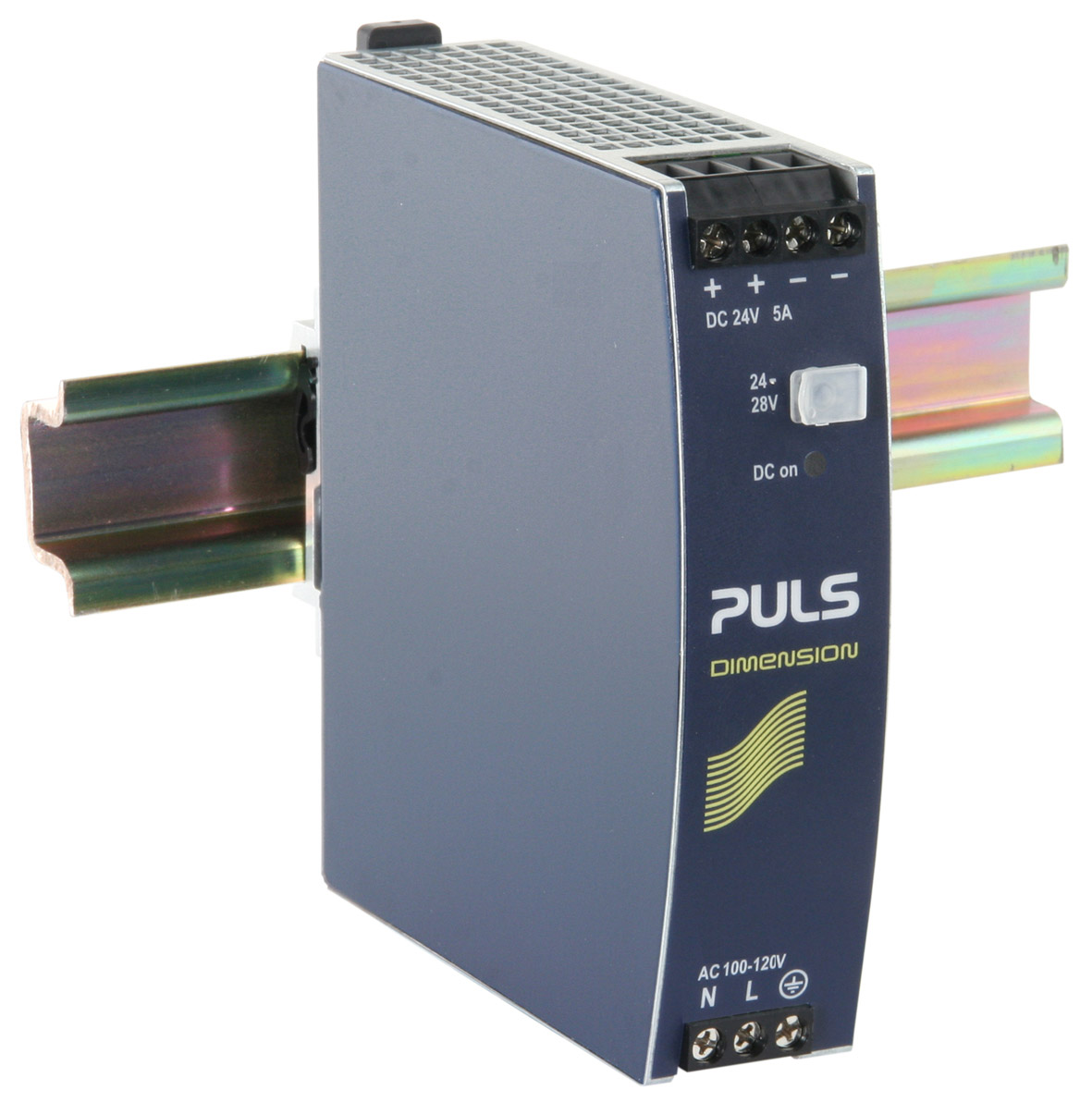

DIN rail power supplies for 1-phase system
24V, 5A
DC output 24 - 28Vdc
5 - 4.3A
Input AC 100 - 120V (± 10%)
Dimensions (WxHxD) 32 x 124 x 117mm
Weight 500g

Input data

AC Input voltage AC 100 - 120V (± 10%)
Power factor 0.59
Input inrush current limitation NTC
Input inrush current 45A
External input fuse recommendation B-16A / C-10A

Output data

Nominal voltage 24Vdc
Adjustment range 24 - 28V
Output current range 5 - 4.3A
Output current 4.3A at 28V
5A at 24V
Output power 120W
Power reserves 20% Power Boost
Derating 3W/°C for >+60°C
Ripple and noise voltage max. 50mVpp


Dimensions (WxHxD) 32mm x 124mm x 117mm
Weight per unit (excl. packaging) 500g
Mounting method DIN rail
Operating temp. range -10°C to 70°C
Connection method Screw terminals
Efficiency, typ. 90%
Power losses, typ. 13.5W
MTBF SN 29500 @ 40°C (h) 740000h
