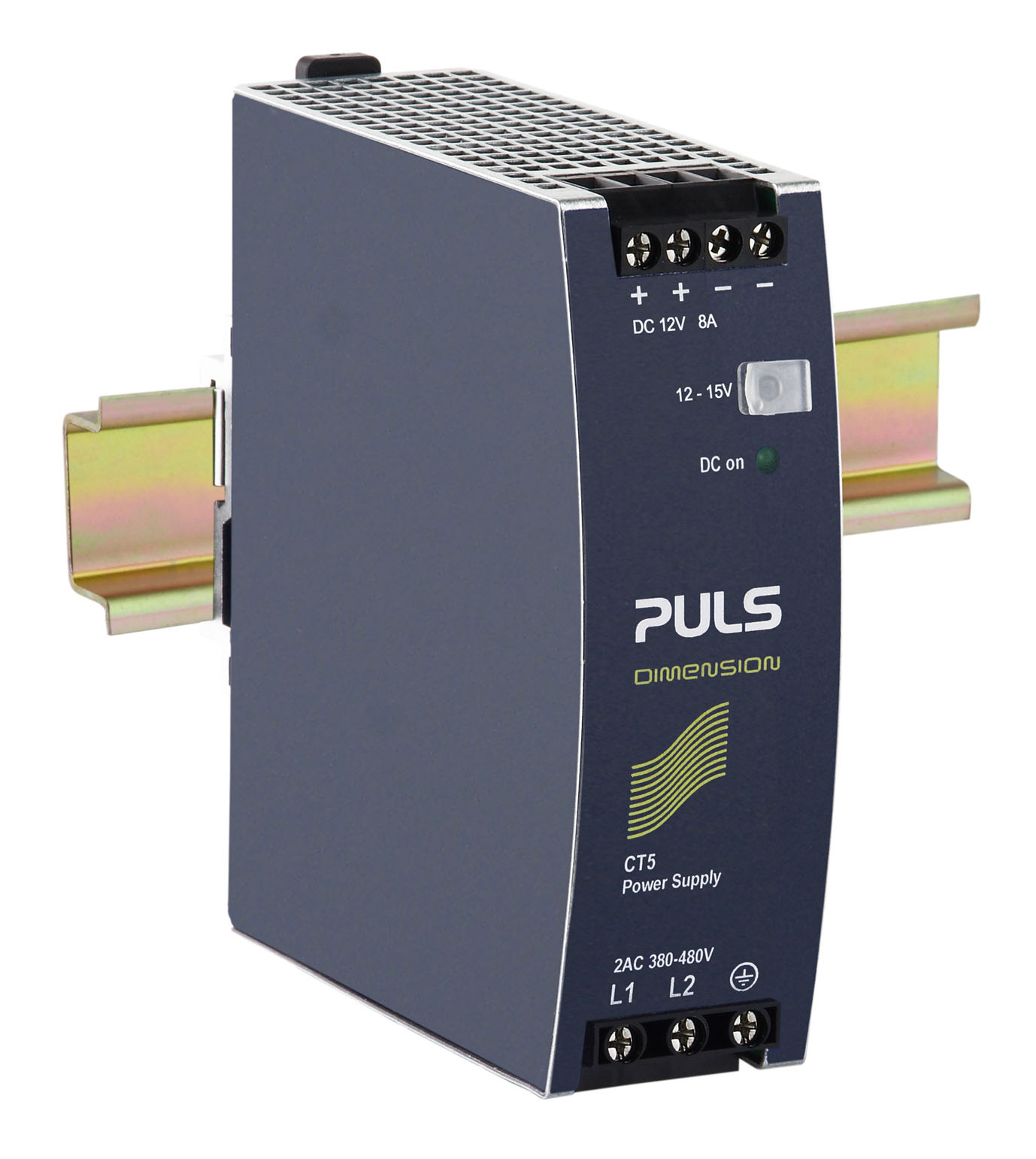

CT5.121
DIN rail power supplies for 3-phase system
12 V, 8 A
Datasheet
12 V, 8 A
| DC output | 12 - 15 Vdc |
|---|---|
| 8 - 6.4 A | |
| 96 W | |
| Input | AC 380 - 480 V (-15 %/+20 %) |
| Dimensions (WxHxD) | 40 x 124 x 117 mm |
| Weight | 500 g |
Input data
| AC Input voltage | AC 380 - 480 V (-15 %/+20 %) |
|---|---|
| Harmonic correction | PFC |
| Power factor | 0.44 |
| Input inrush current limitation | active |
| Input inrush current | 4 A / 4 A |
| External input fuse recommendation | B-6 A / C-3 A |
Output data
| Nominal voltage | 12 Vdc |
|---|---|
| Adjustment range | 12 - 15 V |
| Output current range | 8 - 6.4 A |
| Output current | 6.4 A at 15 V |
| 8 A at 12 V | |
| Output power | 96 W |
| Derating | 2.5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 100 mVpp |
Overview
| Dimensions (WxHxD) | 40 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 500 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 85.4 % |
| Power losses, typ. | 16.4 W |
| MTBF SN 29500 @ 40 °C (h) | 983000 h |
