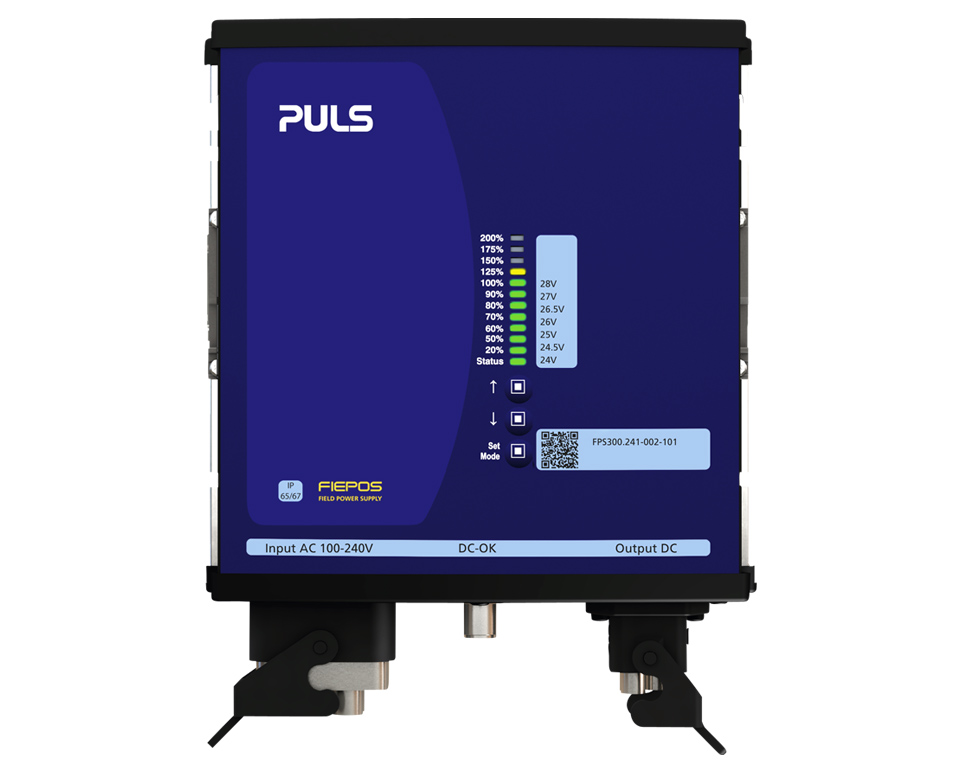

FPS300.241-002-101

New
IP65/67 power supply
24V, 12.5A
Input: HanQ4/2 | Output: HanQ4/0
Datasheet
DC Output 24 - 28Vdc
12.5 - 10.7A
300W
Input AC 100 - 240V (-15%/+10%)
DC 110V - 300V (± 20%)
Size (WxHxD) 182 x 183 x 59mm
Weight 1200g
Compare
Product Status: Stock item

Input Data

AC-Input Voltage AC 100 - 240V (-15%/+10%)
DC-Input Voltage DC 110V - 300V (± 20%)
Power Factor 0.97
Input Inrush Current Limitation NTC
Input inrush current 3A / 7A
External input fuse recommendation B-6A / C-6A

Output Data

Nominal voltage 24Vdc
Adjustment Range 24 - 28V
Output Current Range 12.5 - 10.7A
Output Current 10.7A at 28V
12.5A at 24V
Output Power 300W
Power Reserves 600W power reserves (up to 5s)
Ripple and noise voltage max. 50mVpp

Overview

Size (WxHxD) 182mm x 183mm x 59mm
Weight per piece (excl. packaging) 1200g
Oper. temperature range -25°C to 70°C
Derating 10W/°C at +55 to +70°C
Efficiency, typ. 95.6%
Power losses, typ. 16.2W
Connection method Input HanQ4/2 | Output HanQ4/0
DC-OK Signal yes
