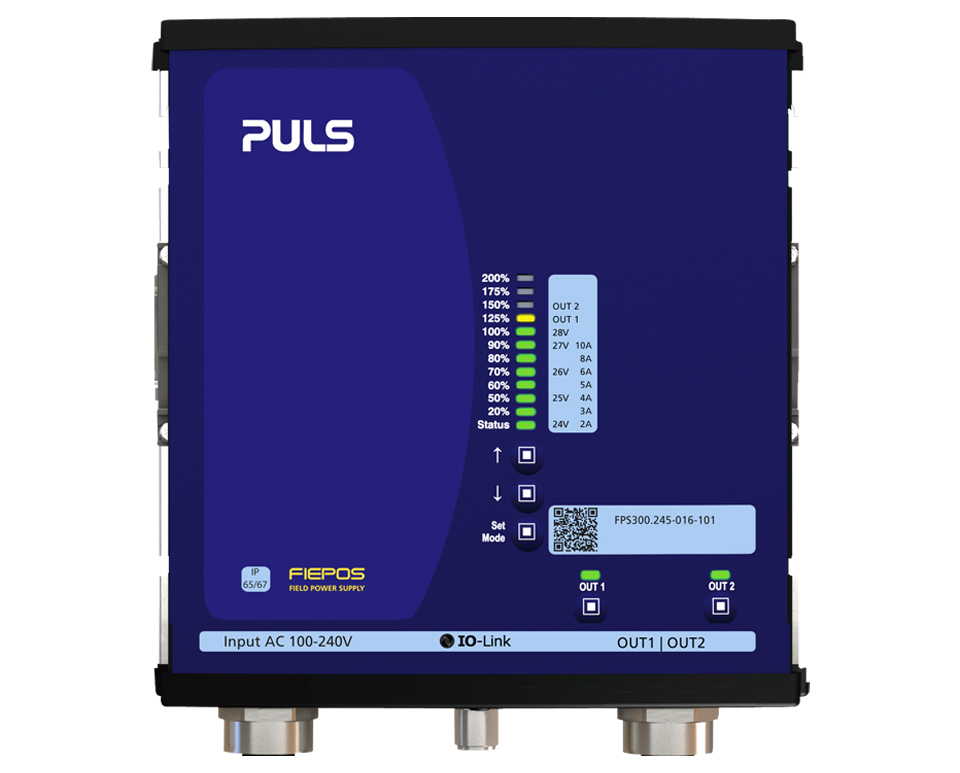

FPS300.245-016-101

New
1-phase IP54-67 power supply
24V, 12.5A
IO-Link | Input: 7/8" - 3pin | Output: 1x 7/8" - 5pin
Datasheet
DC output 24 - 28Vdc
12.5 - 10.7A
300W
Input AC 100 - 240V (-15%/+10%)
DC 110V - 300V (± 20%)
Dimensions (WxHxD) 182 x 183 x 59mm
Weight 1200g
Compare

Input data

AC Input voltage AC 100 - 240V (-15%/+10%)
DC Input voltage DC 110V - 300V (± 20%)
Power factor 0.97
Input inrush current limitation NTC
Input inrush current 3A / 7A
External input fuse recommendation B-6A / C-6A

Output data

Nominal voltage 24Vdc
Adjustment range 24 - 28V
Output current range 12.5 - 10.7A
Output current 10.7A at 28V
12.5A at 24V
Output power 300W
Power reserves 600W power reserves (up to 5s)
Derating 10W/°C for +55 to +70°C
Ripple and noise voltage max. 50mVpp

Overview

Dimensions (WxHxD) 182mm x 183mm x 59mm
Weight per unit (excl. packaging) 1200g
Operating temp. range -25°C to 70°C
Connection method Input 7/8" - 3pin | Output 1x 7/8" - 5pin
Efficiency, typ. 95.6%
Power losses, typ. 16.2W
