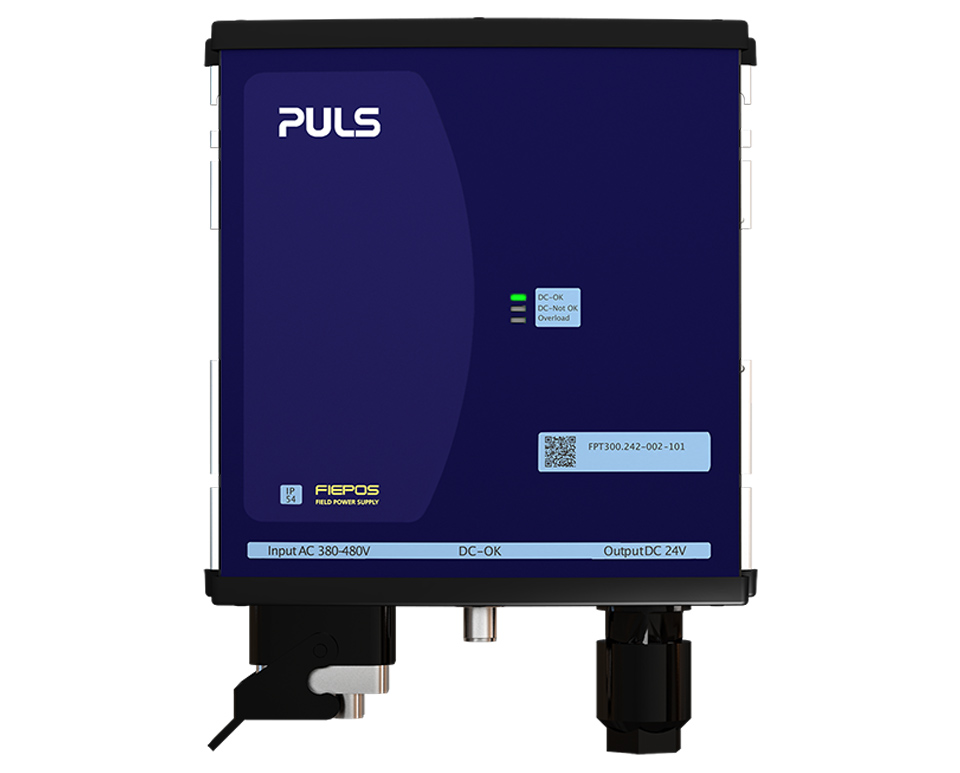

IP65/67 power supply
24V, 12.5A
Input: HanQ4/2 | Output: HanQ4/0
DC Output 300W
Input AC 380 - 480V (± 15%)
Size (WxHxD) 182 x 183 x 59mm
Weight 1200g
Product Status: Stock item

Input Data

AC-Input Voltage AC 380 - 480V (± 15%)
Power Factor 0.9
Input Inrush Current Limitation active
Input inrush current 1.5A
External input fuse recommendation B-6A / C-6A

Output Data

Nominal voltage 24Vdc
Output Power 300W
Power Reserves 100% power reserves (up to 60s)
Ripple and noise voltage max. 100mVpp


Size (WxHxD) 182mm x 183mm x 59mm
Weight per piece (excl. packaging) 1200g
Oper. temperature range -25°C to 70°C
Derating 10W/°C at +55 to +70°C
Efficiency, typ. 95%
Power losses, typ. 15.8W
MTBF SN 29500 @ 40°C (h) 814000h
Connection method Input HanQ4/2 | Output HanQ4/0
DC-OK Signal yes
