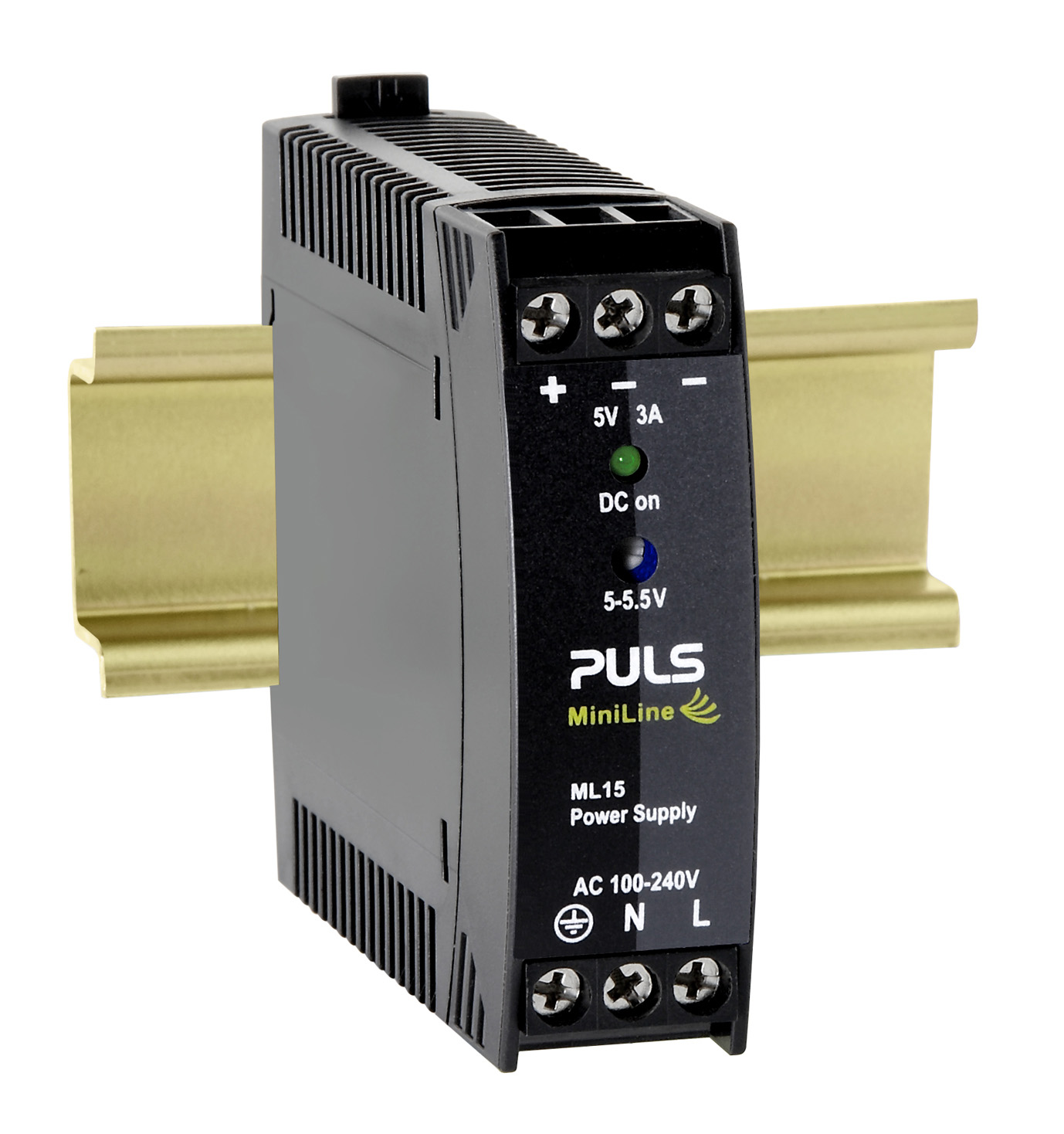

ML15.051

DIN rail power supplies for 1-phase system
5V, 3A
Datasheet
DC Output 5 - 5.5Vdc
3 - 2.7A
15W
Input AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
Size (WxHxD) 23 x 75 x 91mm
Weight 130g
Compare
Product Status: Stock item

Input Data

AC-Input Voltage AC 100 - 240V (-15%/+10%)
DC-Input Voltage DC 110V - 300V (-20%/+25%)
Power Factor 0.44
Input Inrush Current Limitation NTC
Input inrush current 16A / 31A
External input fuse recommendation B-6A / C-3A

Output Data

Nominal voltage 5Vdc
Adjustment Range 5 - 5.5V
Output Current Range 3 - 2.7A
Output Current 2.7A at 5.5V
3A at 5V
Output Power 15W
Ripple and noise voltage max. 50mVpp

Overview

Size (WxHxD) 23mm x 75mm x 91mm
Weight per piece (excl. packaging) 130g
Derating 0.4W/°C at >+60°C
Mounting Method DIN rail
Efficiency, typ. 77.2%
Power losses, typ. 4,5W
MTBF SN 29500 @ 40°C (h) 2686000h
Connection method Screw terminals
