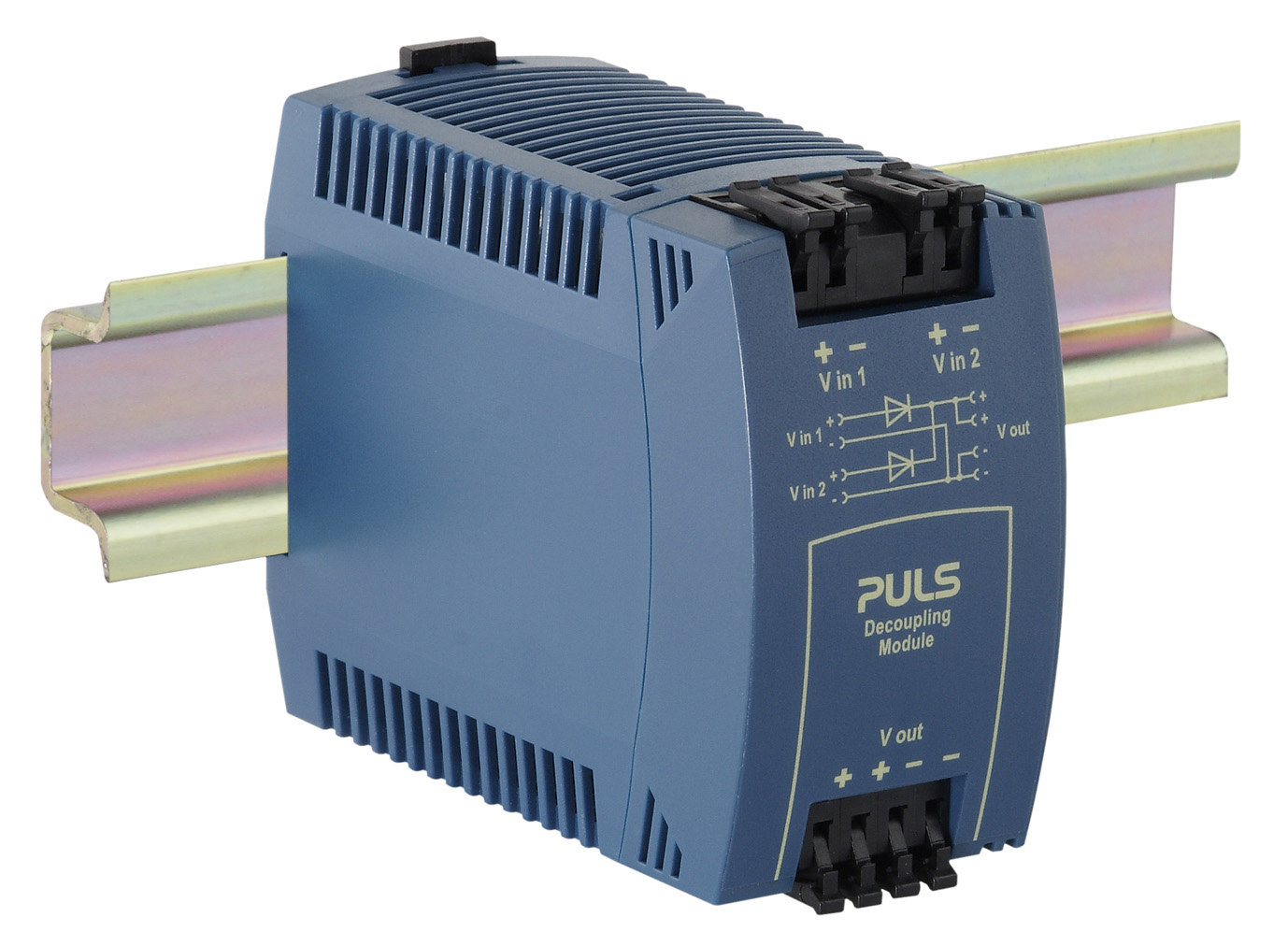

MLY02.100
Diode redundancy module
24 V, 10 A 2x 5A input
Datasheet
24 V, 10 A 2x 5A input
| DC output | 12 - 48 Vdc |
|---|---|
| 10 A | |
| Input | DC 12 V - 48 V (± 25 %) |
| Dimensions (WxHxD) | 45 x 75 x 91 mm |
| Weight | 140 g |
Input data
| Input current | 2 x 5 A |
|---|---|
| Nominal current per input | 5 A |
| DC Input voltage | DC 12 V - 48 V (± 25 %) |
| Voltage drop | 800 mV |
Output data
| Output current range | 10 A |
|---|---|
| Output current | 10 A |
| Output current short circuit max. | 16 A |
| Derating | 0.25 W/°C for >+60 °C |
Overview
| Dimensions (WxHxD) | 45 mm x 75 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 140 g |
| Mounting method | DIN rail |
| Operating temp. range | -40 °C to 70 °C |
| Connection method | Spring clamps |
| Power losses, typ. | 4.0 W |
| No-load losses, typ. | 0 W |
| MTBF SN 29500 @ 40 °C (h) | 58000000 h |
