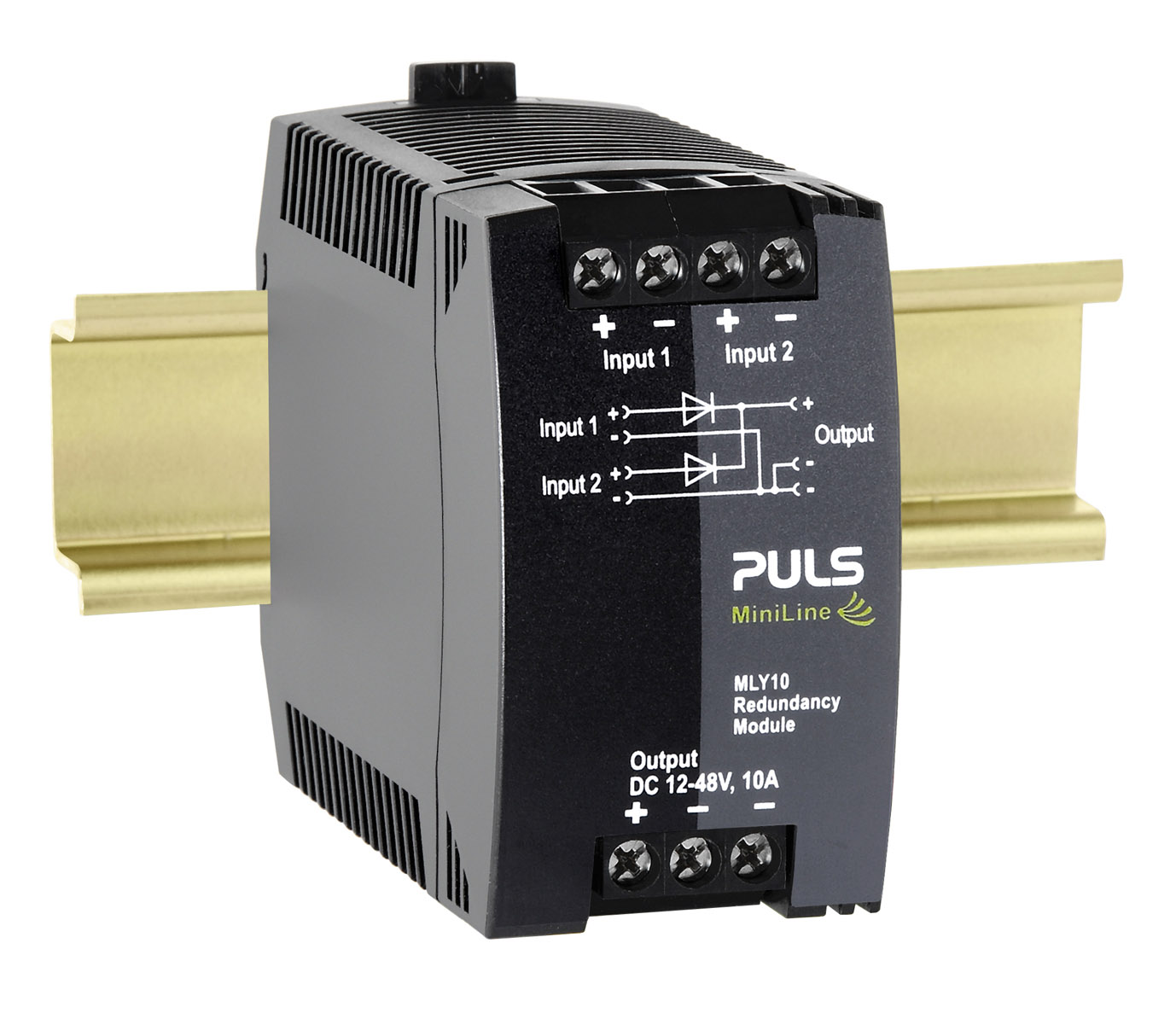

24 V, 10 A 2x 5A input
|DC output||12 - 48 Vdc|
|Input||DC 12 V - 48 V (± 25 %)|
|Dimensions (WxHxD)||45 x 75 x 91 mm|
|Input current||2 x 5 A|
|Nominal current per input||5 A|
|DC Input voltage||DC 12 V - 48 V (± 25 %)|
|Voltage drop||800 mV|
|Output current range||10 A|
|Output current||10 A|
|Output current short circuit max.||16 A|
|Derating||0.25 W/°C for >+60 °C|
|Dimensions (WxHxD)||45 mm x 75 mm x 91 mm|
|Weight per unit (excl. packaging)||140 g|
|Mounting method||DIN rail|
|Operating temp. range||-40 °C to 70 °C|
|Connection method||Screw terminals|
|Power losses, typ.||4.0 W|
|No-load losses, typ.||0 W|
|MTBF SN 29500 @ 40 °C (h)||85000000 h|
