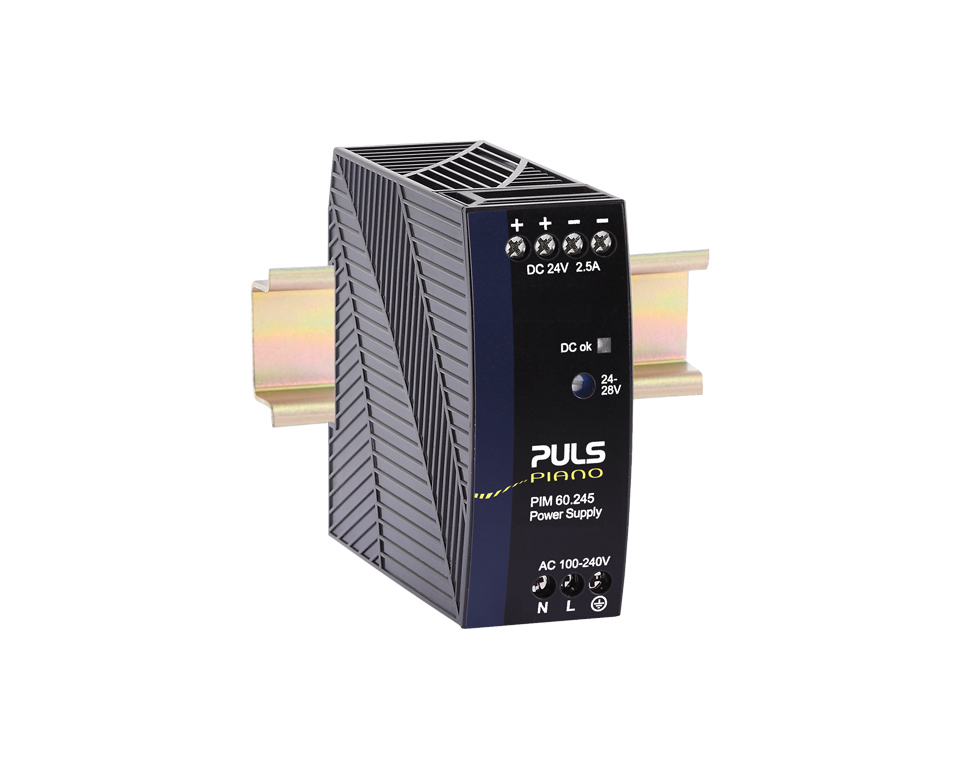

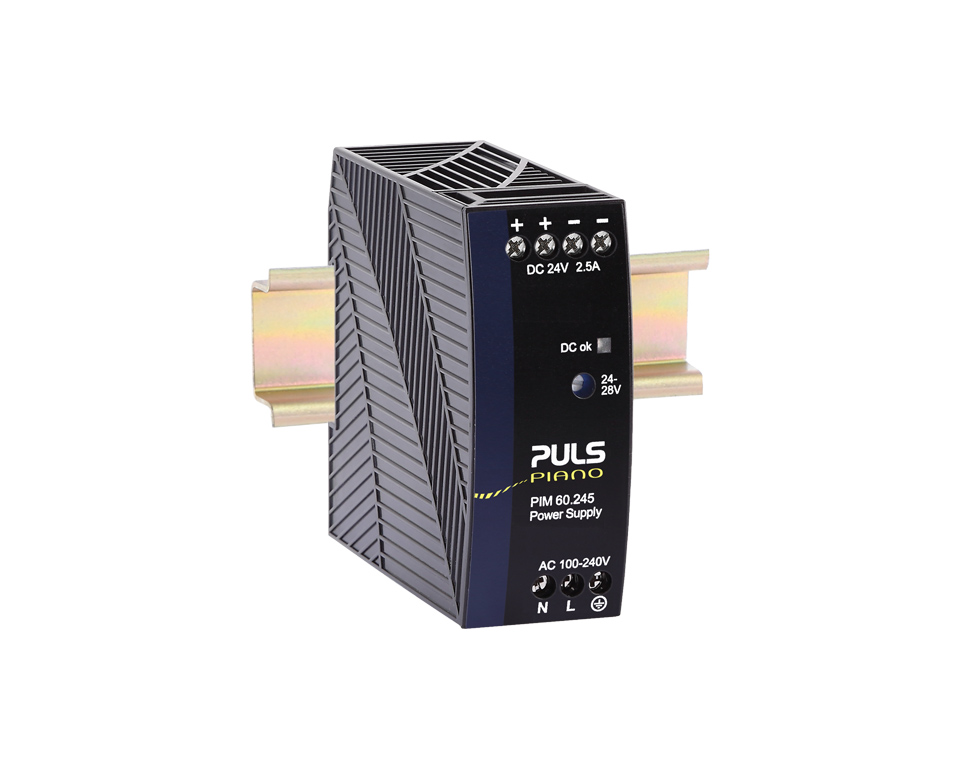

PIM60.245
New
DIN rail power supplies for 1-phase system
24V, 2.5A NEC Class 2
Datasheet
24V, 2.5A NEC Class 2
| DC output | 24 - 28Vdc |
|---|---|
| 2.5 - 2.1A | |
| 60W | |
| Input | AC 100 - 240V (± 10%) |
| Dimensions (WxHxD) | 36 x 90 x 91mm |
| Weight | 220g |
Input data
| AC Input voltage | AC 100 - 240V (± 10%) |
|---|---|
| Power factor | 0.47 |
| Input inrush current limitation | NTC |
| Input inrush current | 15A / 36A |
| External input fuse recommendation | B-6A / C-4A |
Output data
| Nominal voltage | 24Vdc |
|---|---|
| Adjustment range | 24 - 28V |
| Output current range | 2.5 - 2.1A |
| Output current | 2.1A at 28V |
| 2.5A at 24V | |
| Output power | 60W |
| Derating | 0.06W/°C for +60 to +70°C |
| Ripple and noise voltage max. | 100mVpp |
Overview
| Dimensions (WxHxD) | 36mm x 90mm x 91mm |
|---|---|
| Weight per unit (excl. packaging) | 220g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
| Efficiency, typ. | 91.8% |
| Power losses, typ. | 6.2W 5.4W |
| MTBF SN 29500 @ 40°C (h) | 1982000h |
| DC-OK signal | yes |
