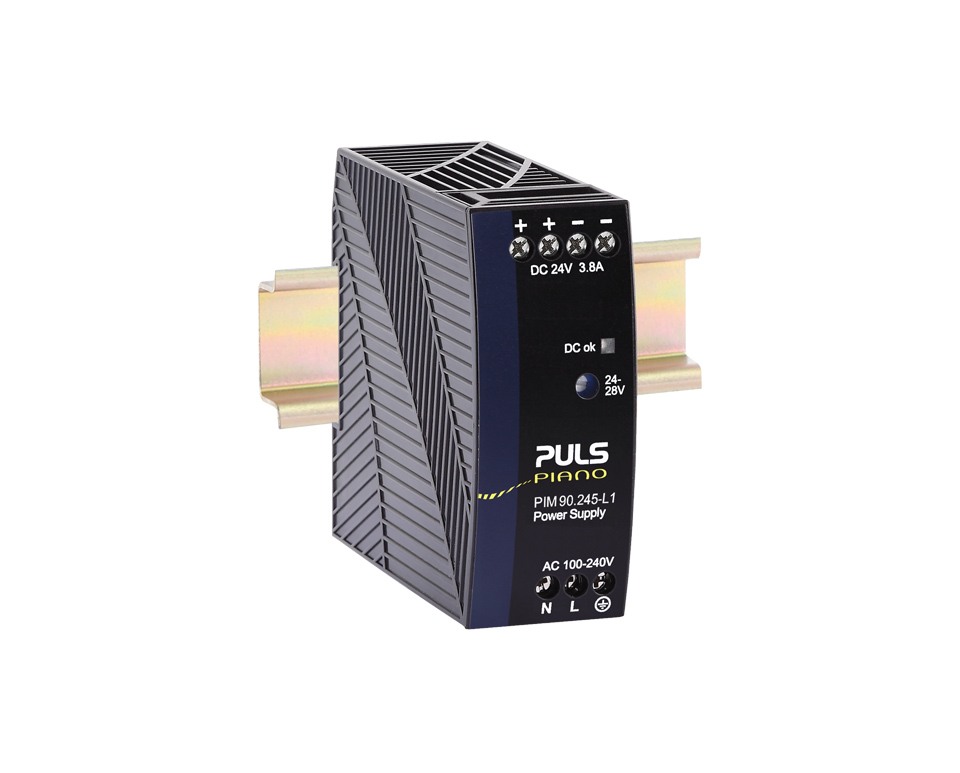

PIM90.245-L1
DIN rail power supplies for 1-phase system
24 V, 3.8 A screw terminals, NEC Class 2
Datasheet
24 V, 3.8 A screw terminals, NEC Class 2
| DC output | 24 - 28 Vdc |
|---|---|
| 3.8 - 3.2 A | |
| 90 W | |
| Input | AC 100 - 240 V (± 10 %) |
| Dimensions (WxHxD) | 36 x 90 x 91 mm |
| Weight | 270 g |
Input data
| AC Input voltage | AC 100 - 240 V (± 10 %) |
|---|---|
| Power factor | 0.45 |
| Input inrush current | 40 A |
| External input fuse recommendation | B-6 A / C-4 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 3.8 - 3.2 A |
| Output current | 3.2 A at 28 V |
| 3.8 A at 24 V | |
| Output power | 90 W |
| Derating | 2.4 W/°C for +60 to +70 °C |
| Ripple and noise voltage max. | 100 mVpp |
Overview
| Dimensions (WxHxD) | 36 mm x 90 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 270 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
| Efficiency, typ. | 93.8 % |
| Power losses, typ. | 7.9 W 6 W |
| MTBF SN 29500 @ 40 °C (h) | 1 446 000 h |
