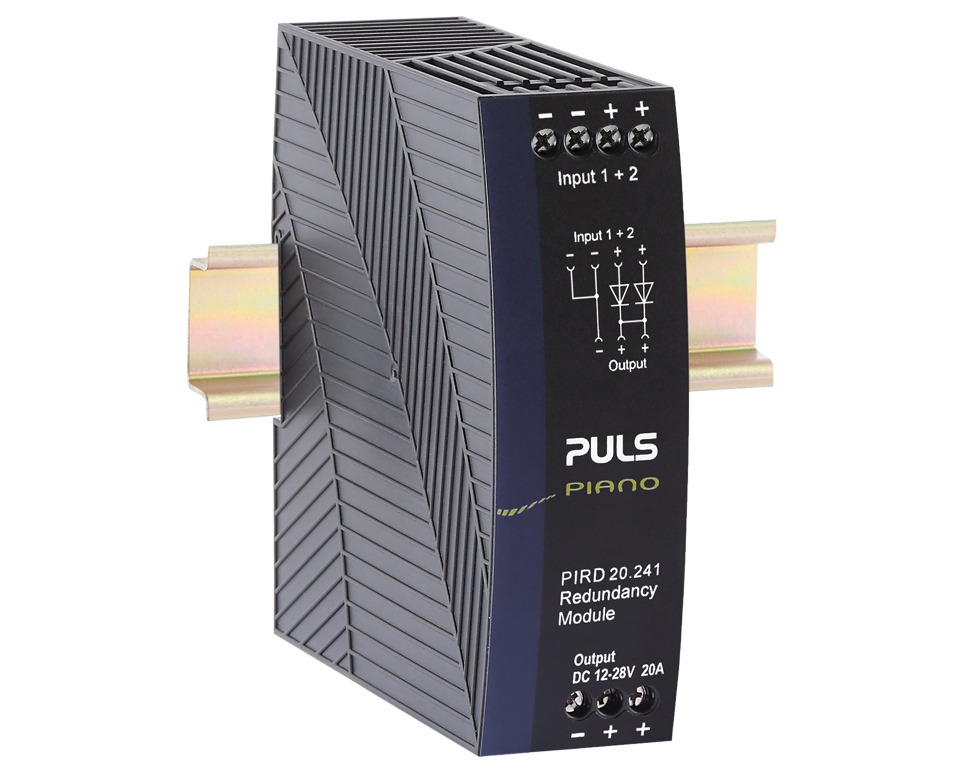

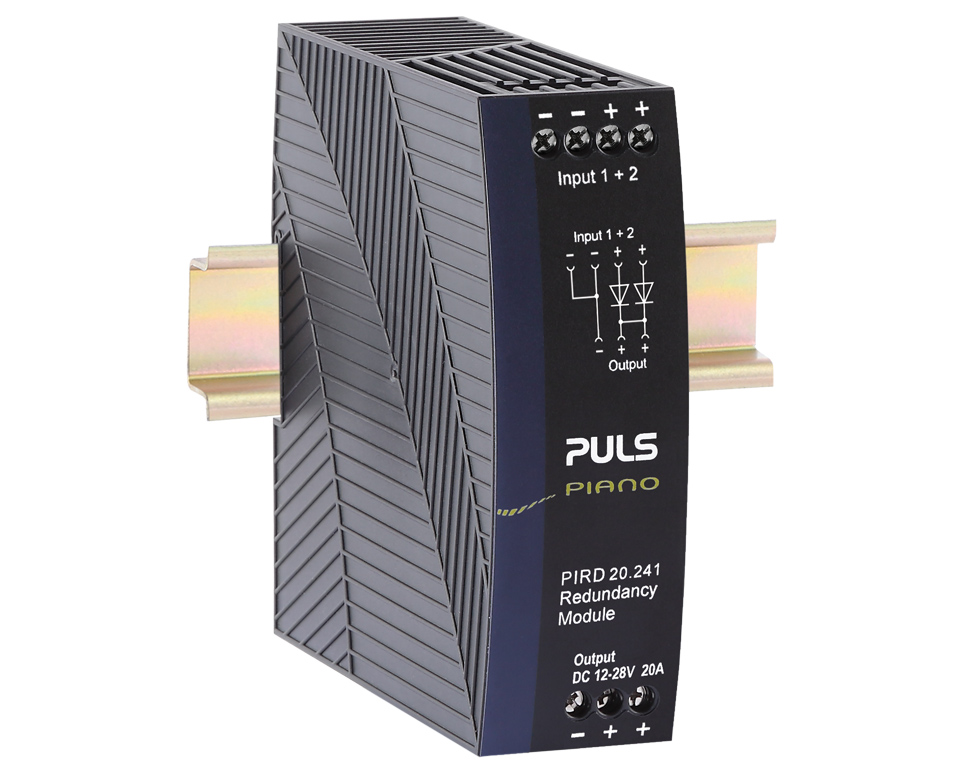

PIRD20.241
Diode redundancy module
24 V, 20 A 2x 10A; DC-OK relay contact
Datasheet
24 V, 20 A 2x 10A; DC-OK relay contact
| DC output | 12 - 24 Vdc |
|---|---|
| Input | DC 12 V - 28 V (± 25 %) |
| Dimensions (WxHxD) | 39 x 124 x 124 mm |
| Weight | 280 g |
Input data
| Input current | 2 x 10 A |
|---|---|
| Nominal current per input | 10 A |
| DC Input voltage | DC 12 V - 28 V (± 25 %) |
| Voltage drop | 460 mV |
Output data
| Output current range | 20 A |
|---|---|
| Output current | 20 A |
| Output current short circuit max. | 26 A |
| Derating | 0.5 W/°C for >+55 °C |
Overview
| Dimensions (WxHxD) | 39 mm x 124 mm x 124 mm |
|---|---|
| Weight per unit (excl. packaging) | 280 g |
| Mounting method | DIN rail |
| Operating temp. range | -40 °C to 70 °C |
| Connection method | Screw terminals |
| Power losses, typ. | 4.6 W |
| No-load losses, typ. | 0 W |
| MTBF SN 29500 @ 40 °C (h) | 20310000 h |
