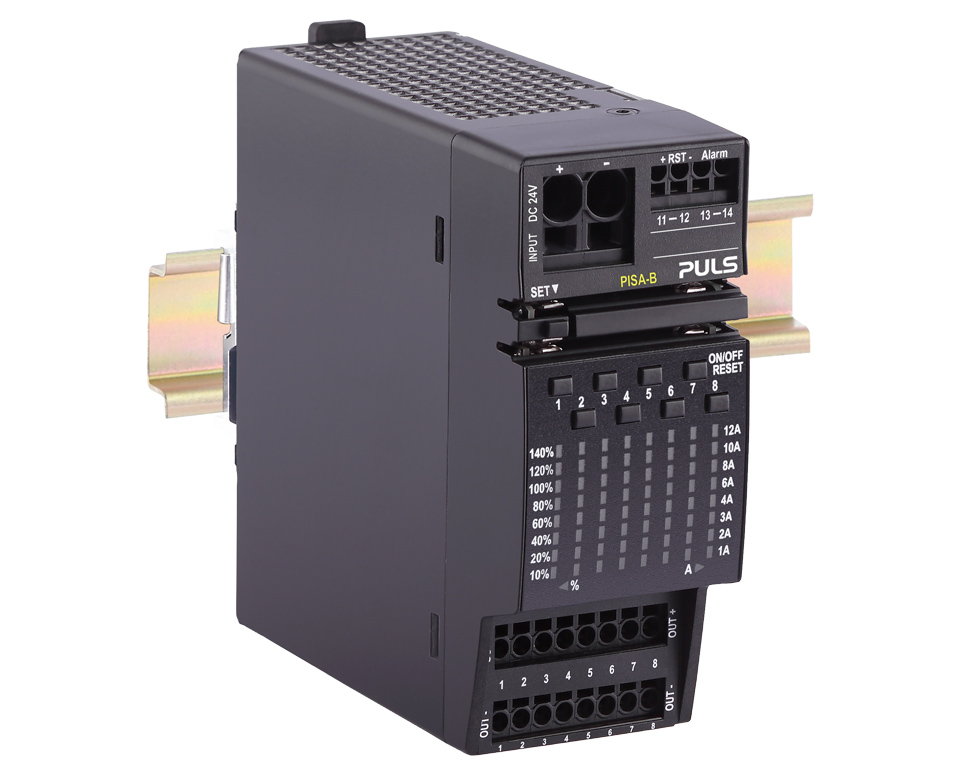

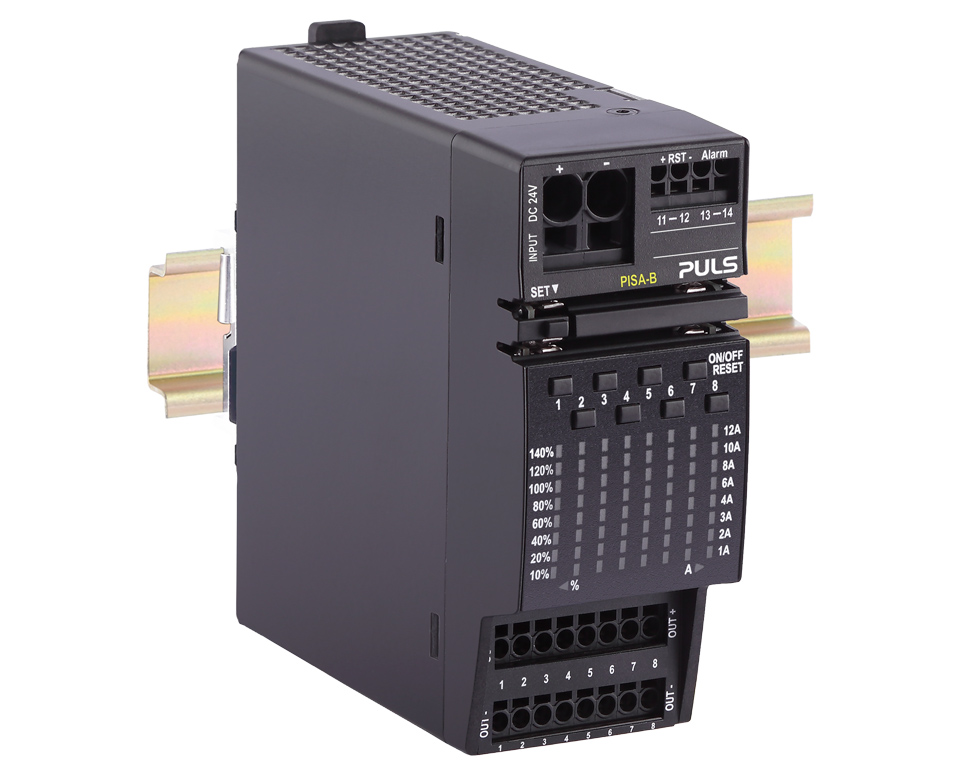

PISA-B-812-B1
Electronic circuit breaker
24 V, 40 A 8 output channels: 2x 1-12A, 6x 1-10A; Common alarm signal
Datasheet
24 V, 40 A 8 output channels: 2x 1-12A, 6x 1-10A; Common alarm signal
| DC output | DC 24 V |
|---|---|
| Input | DC 19.2 V - 30 V |
| Dimensions (WxHxD) | 52 x 124 x 130 mm |
| Weight | 370 g |
Input data
| DC Input voltage | DC 19.2 V - 30 V |
|---|---|
| DC Input current at no load, typ. | 40 mA |
| Input voltage required to switch on the outputs, typ. | 19 Vdc |
Output data
| Output current (sum of all outputs) | 40 A |
|---|---|
| Turn-on delay of outputs | 750 ms |
Overview
| Dimensions (WxHxD) | 52 mm x 124 mm x 130 mm |
|---|---|
| Weight per unit (excl. packaging) | 370 g |
| Mounting method | DIN rail |
| Housing material | Metal |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Push-in clamps |
| Power losses, typ. | 10.8 W |
| No-load losses, typ. | 1 W |
| MTBF SN 29500 @ 40 °C (h) | 512000 h |
