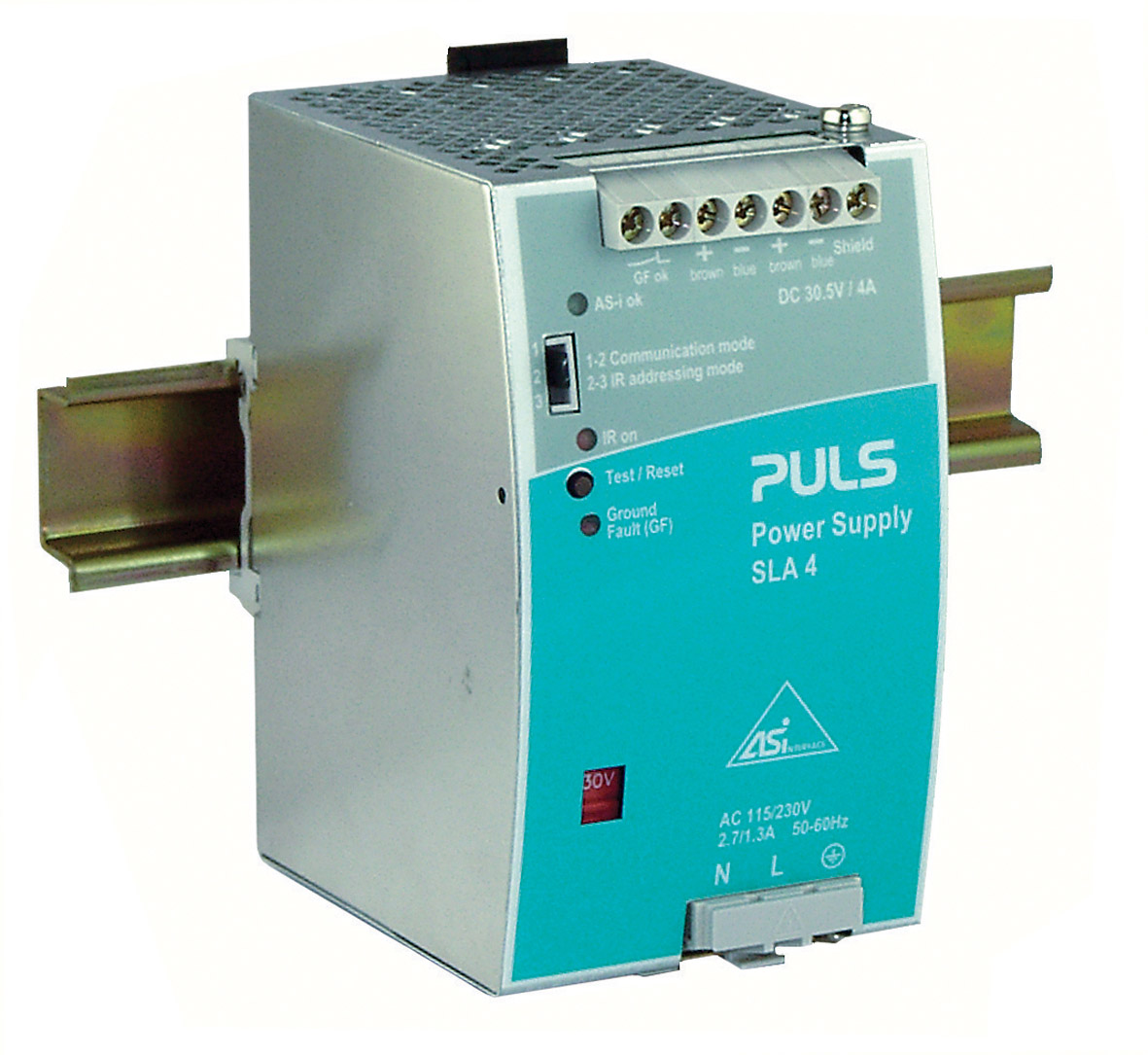

SLA4.100
AS-Interface power supply
30.5 V, 4 A
Datasheet
30.5 V, 4 A
| DC output | 30.5 Vdc |
|---|---|
| 4 A | |
| Input | AC 100 - 120 / 220 - 240 V (-15 %/+10 %) |
| Dimensions (WxHxD) | 65 x 124 x 102 mm |
| Weight | 620 g |
Input data
| AC Input voltage | AC 100 - 120 / 220 - 240 V (-15 %/+10 %) |
|---|---|
| Power factor | 0.53 |
| Input inrush current limitation | NTC |
Output data
| Nominal voltage | 30.5 Vdc |
|---|---|
| Adjustment range | 30.5 V |
| Output current range | 4 A |
| Output current | 4 A at 30.5 V |
| Derating | 3 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 65 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 620 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
| Efficiency, typ. | 88 % |
| Power losses, typ. | 13.5 W |
| MTBF SN 29500 @ 40 °C (h) | 1222000 h |
