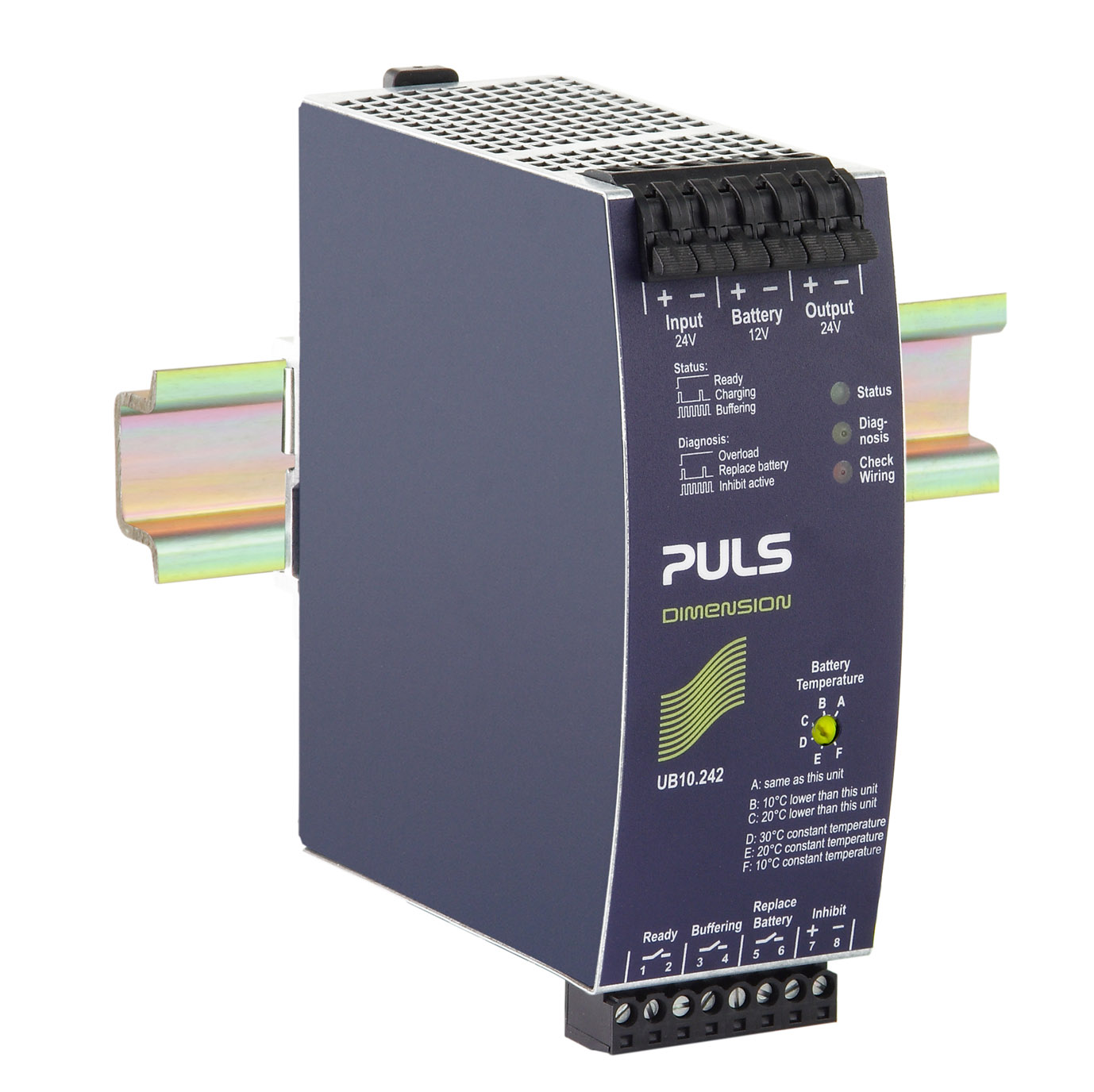

24V, 10A for battery sizes from 17Ah to 130Ah
|DC output||DC 24V|
|Dimensions (WxHxD)||49 x 124 x 117mm|
|DC Input voltage||DC 24V|
|Int. current consumption (incl. charging current)||2.2A|
|Storage element||External lead acid battery|
|Allowed battery size||12V, 17 to 130Ah|
|Temperature tracking of the end-of-charge voltage||manual/automatic|
|Dimensions (WxHxD)||49mm x 124mm x 117mm|
|Weight per unit (excl. packaging)||545g|
|Mounting method||DIN rail|
|Operating temp. range||-25°C to 50°C|
|Connection method||Spring clamps|
|MTBF SN 29500 @ 40°C (h)||886000h|
