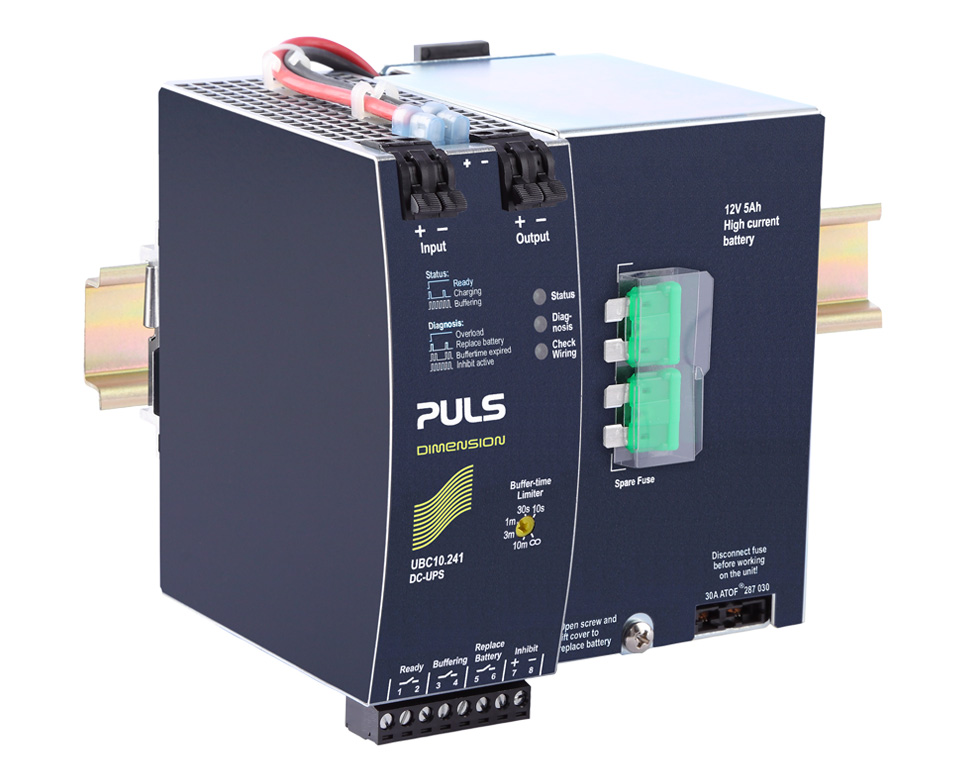

UBC10.241-N1
24 V, 10 A battery not assembled
DC output | DC 24 V |
---|---|
10 A | |
Input | DC 24 V |
Dimensions (WxHxD) | 123 x 124 x 119 mm |
Weight | 850 g |
Input data
DC Input voltage | DC 24 V |
---|---|
Int. current consumption (incl. charging current) | 1.3 A |
Output data
Nominal voltage | 24 Vdc |
---|---|
22.5 Vds | |
Output current | 15 A |
10 A |
Buffering
Storage element | Built-in lead acid battery |
---|---|
Allowed battery size | 12 V, 5A h |
Temperature tracking of the end-of-charge voltage | automatically with temp. sensor |
Overview
Dimensions (WxHxD) | 123 mm x 124 mm x 119 mm |
---|---|
Weight per unit (excl. packaging) | 850 g |
Mounting method | DIN rail |
Operating temp. range | 0 °C to 40 °C |
Connection method | Spring clamps |
MTBF SN 29500 @ 40 °C (h) | 886000 h |
