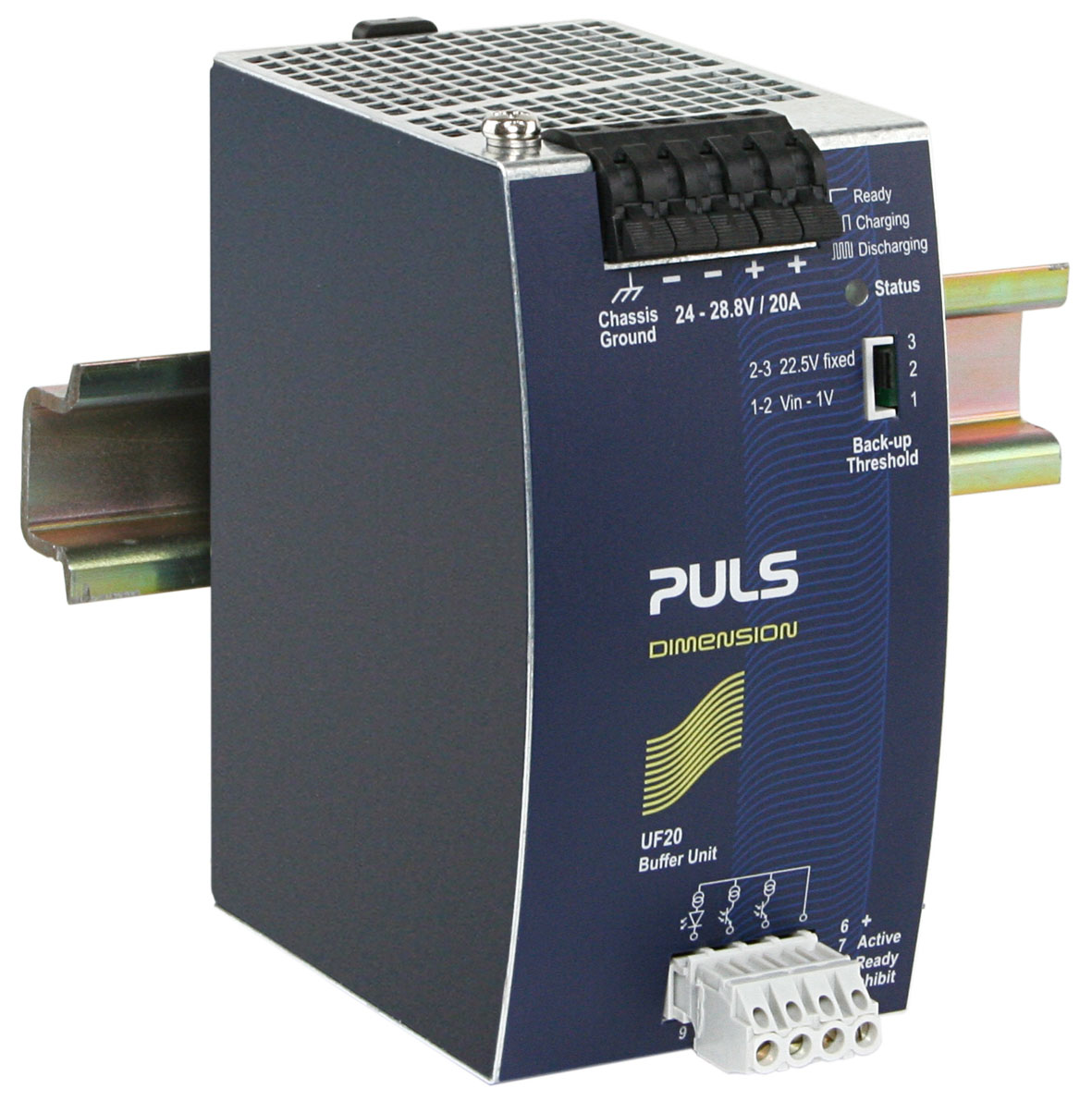

24 V, 20 A electrolytic capacitor buffer module typ. 310ms at 20A
|DC output||DC 24 V|
|Input||DC 24 V - 24 V (-7 %/+20 %)|
|Dimensions (WxHxD)||64 x 124 x 102 mm|
|DC Input voltage||DC 24 V - 24 V (-7 %/+20 %)|
|Nominal voltage||24 Vdc|
|Output current||24 A|
|Storage element||Electrolytic capacitors|
|Dimensions (WxHxD)||64 mm x 124 mm x 102 mm|
|Weight per unit (excl. packaging)||740 g|
|Mounting method||DIN rail|
|Operating temp. range||-25 °C to 70 °C|
|Connection method||Spring clamps|
|MTBF SN 29500 @ 40 °C (h)||2327000 h|
