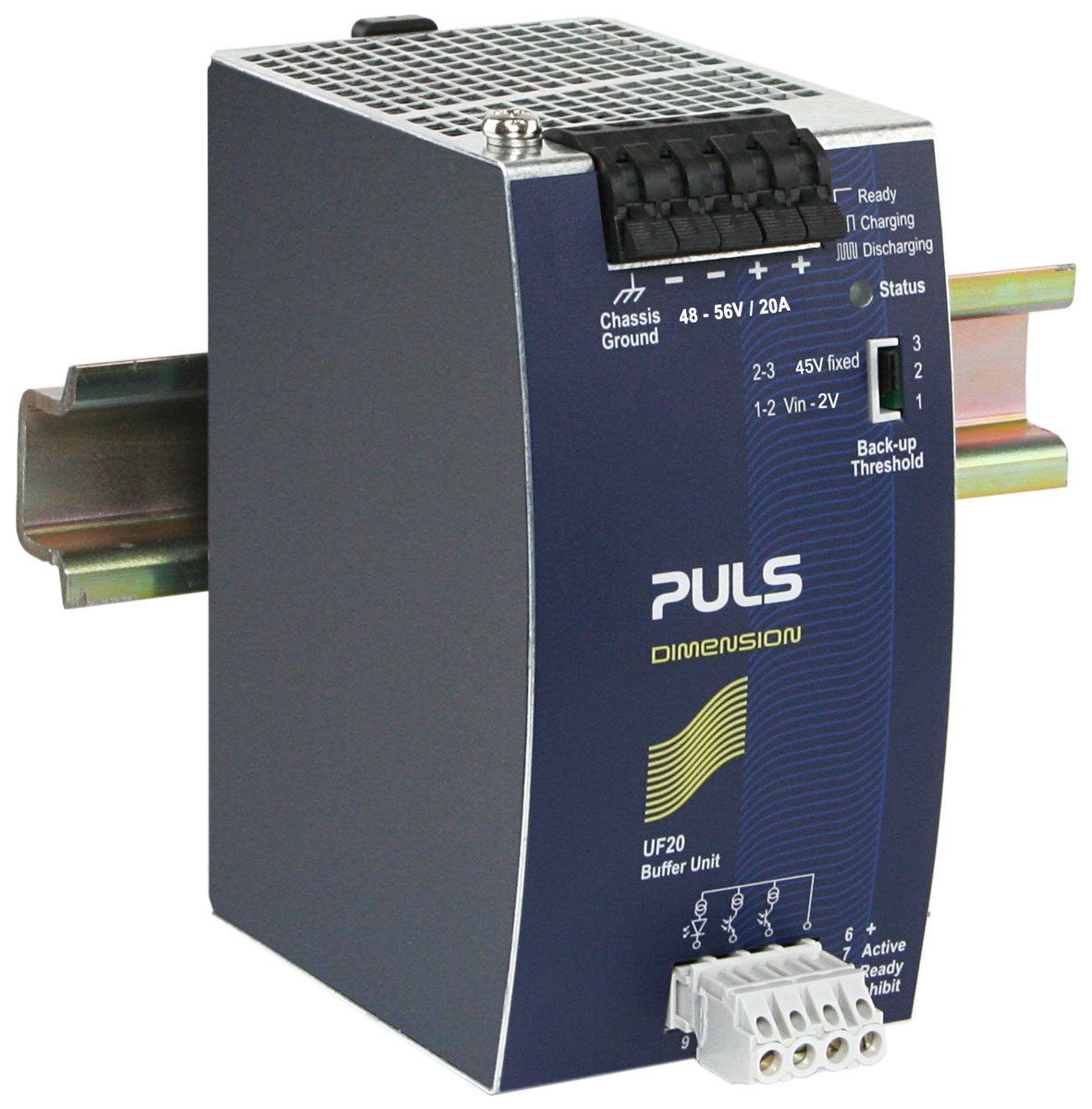

UF20.481
Buffer module
48 V, 20 A electrolytic capacitor buffer module typ. 100ms at 20A
Datasheet
48 V, 20 A electrolytic capacitor buffer module typ. 100ms at 20A
| DC output | DC 48 V |
|---|---|
| 20 A | |
| Input | DC 48 V (-20 %/+25 %) |
| Dimensions (WxHxD) | 64 x 124 x 102 mm |
| Weight | 740 g |
Input data
| DC Input voltage | DC 48 V (-20 %/+25 %) |
|---|
Output data
| 48 Vds | |
| Output current | 20 A |
Buffering
| Storage element | Electrolytic capacitors |
|---|
Overview
| Dimensions (WxHxD) | 64 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 740 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| MTBF SN 29500 @ 40 °C (h) | 2348000 h |
