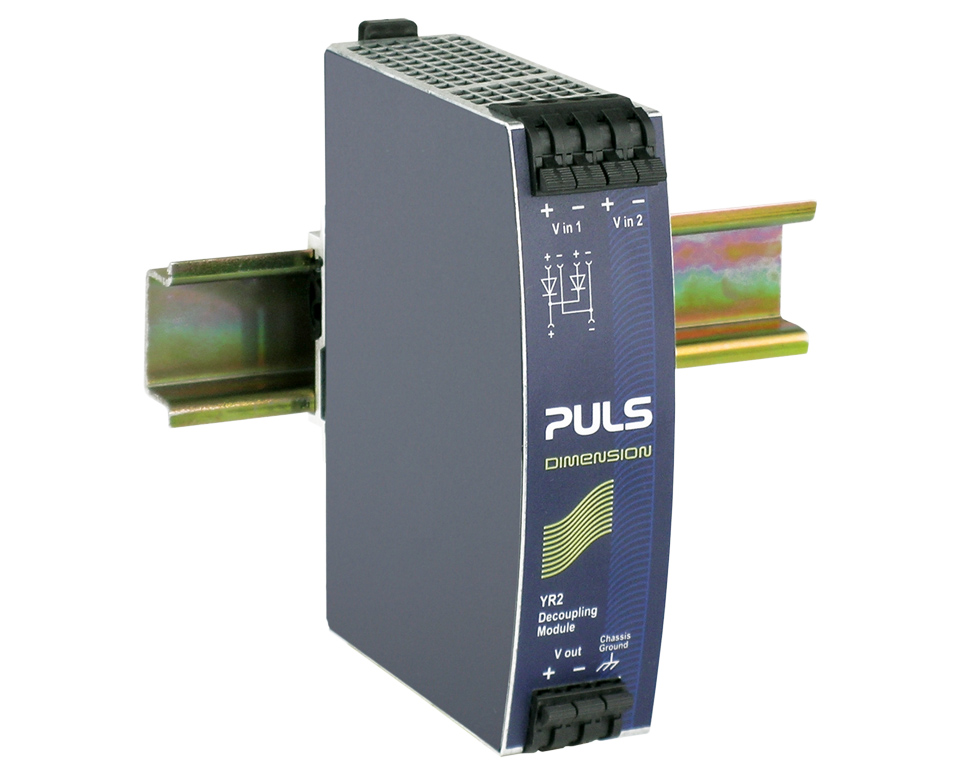

Diode redundancy module
24 V, 20 A
2x 10A input
DC output 12 - 48 Vdc
20 A
Input DC 12 V - 48 V (± 25 %)
Dimensions (WxHxD) 32 x 124 x 102 mm
Weight 290 g

Input data

Input current 2 x 10 A
Nominal current per input 10 A
DC Input voltage DC 12 V - 48 V (± 25 %)
Voltage drop 800 mV

Output data

Output current range 20 A
Output current 20 A
Output current short circuit max. 25 A
Derating 12 W/°C for +60 to +70 °C


Dimensions (WxHxD) 32 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 290 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Spring clamps
Power losses, typ. 17.0 W
No-load losses, typ. 0 W
MTBF SN 29500 @ 40 °C (h) 47000000 h
