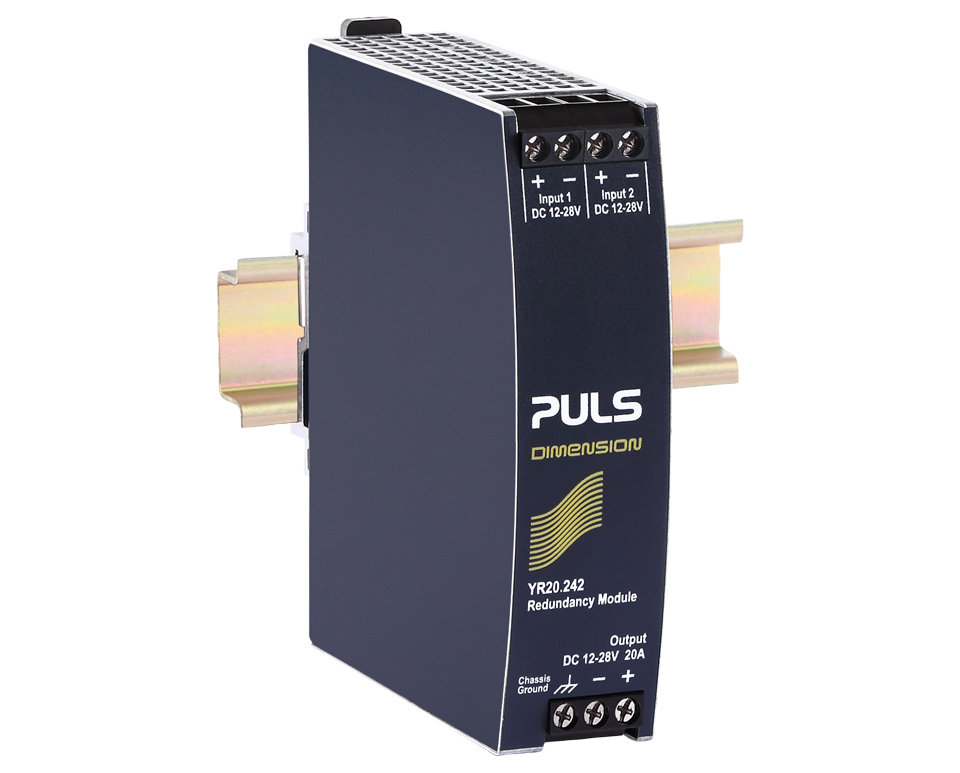

YR20.242

MOSFET redundancy module
24 V, 20 A
2 x 10A input
Datasheet
DC output 12 - 28 Vdc
Input DC 12 V - 28 V
Dimensions (WxHxD) 32 x 124 x 117 mm
Weight 250 g
Compare

Input data

Input current 2 x 10 A
Nominal current per input 10 A
DC Input voltage DC 12 V - 28 V
Voltage drop 60 mV

Output data

Output current range 20 A
Output current 20 A
Output current short circuit max. 26 A

Overview

Dimensions (WxHxD) 32 mm x 124 mm x 117 mm
Weight per unit (excl. packaging) 250 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Screw terminals
Power losses, typ. 0.6 W
No-load losses, typ. 0.2 W
MTBF SN 29500 @ 40 °C (h) 7895000 h
