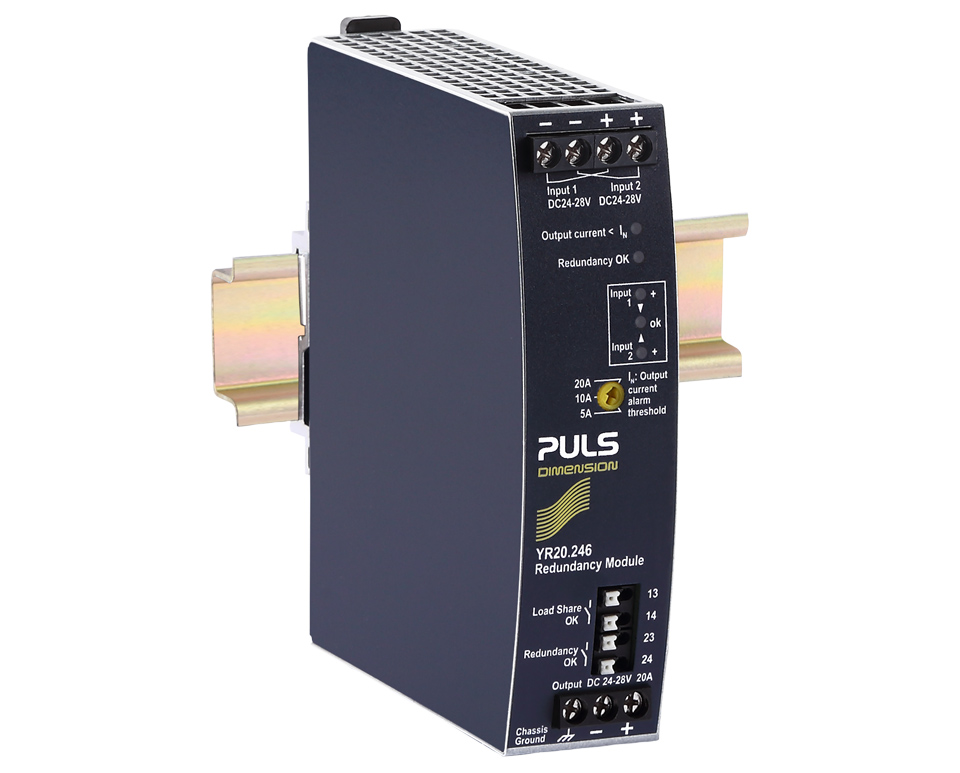

24 V, 20 A 2 x 10A input
|DC output||24 - 28 Vdc|
|Input||DC 24 V - 28 V|
|Dimensions (WxHxD)||32 x 124 x 117 mm|
|Input current||2 x 10 A|
|Nominal current per input||10 A|
|DC Input voltage||DC 24 V - 28 V|
|Voltage drop||110 mV|
|Output current range||20 A|
|Output current||20 A|
|Output current short circuit max.||26 A|
|Dimensions (WxHxD)||32 mm x 124 mm x 117 mm|
|Weight per unit (excl. packaging)||310 g|
|Mounting method||DIN rail|
|Operating temp. range||-40 °C to 70 °C|
|Connection method||Screw terminals|
|Power losses, typ.||2.6 W|
|No-load losses, typ.||1.7 W|
|MTBF SN 29500 @ 40 °C (h)||1954000 h|
