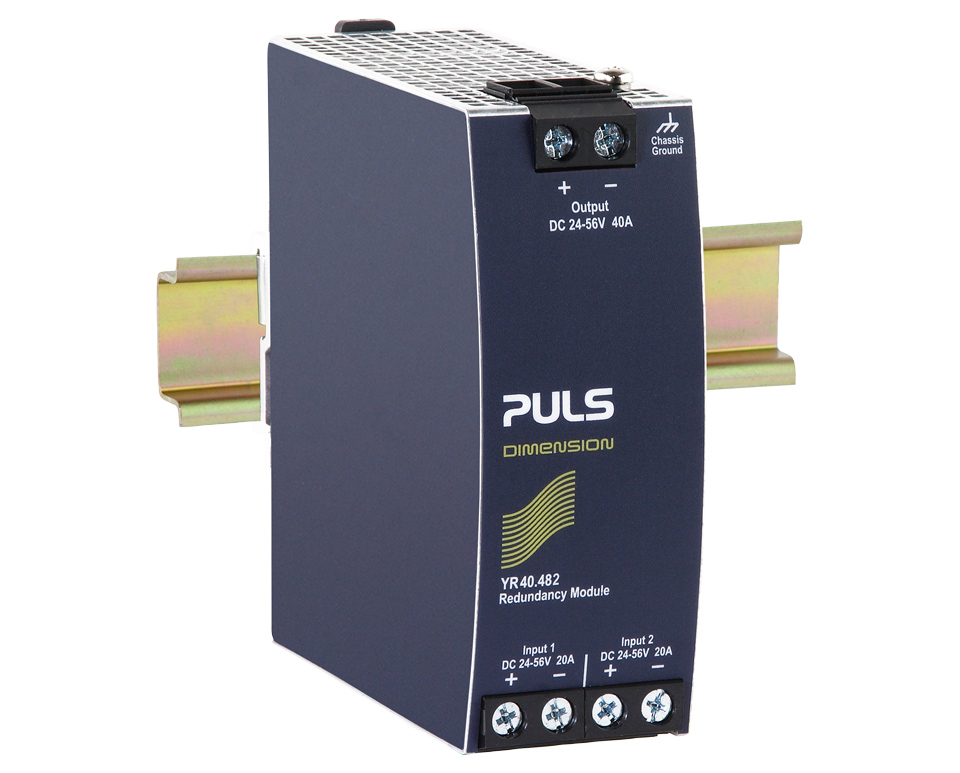

YR40.482
24 V, 40 A 2x 20A input, for all DIMENSION power supplies
DC output | 24 - 56 Vdc |
---|---|
40 A | |
Input | DC 24 V - 56 V |
Dimensions (WxHxD) | 46 x 124 x 127 mm |
Weight | 360 g |
Input data
Input current | 2 x 20 A |
---|---|
Nominal current per input | 20 A |
DC Input voltage | DC 24 V - 56 V |
Voltage drop | 60 mV |
Output data
Output current range | 40 A |
---|---|
Output current | 40 A |
Output current short circuit max. | 45 A |
Derating | 1 W/°C for >+60 °C |
Overview
Dimensions (WxHxD) | 46 mm x 124 mm x 127 mm |
---|---|
Weight per unit (excl. packaging) | 360 g |
Mounting method | DIN rail |
Operating temp. range | -40 °C to 70 °C |
Connection method | Screw terminals |
Power losses, typ. | 1.8 W |
No-load losses, typ. | 0.62 W |
MTBF SN 29500 @ 40 °C (h) | 4100000 h |
