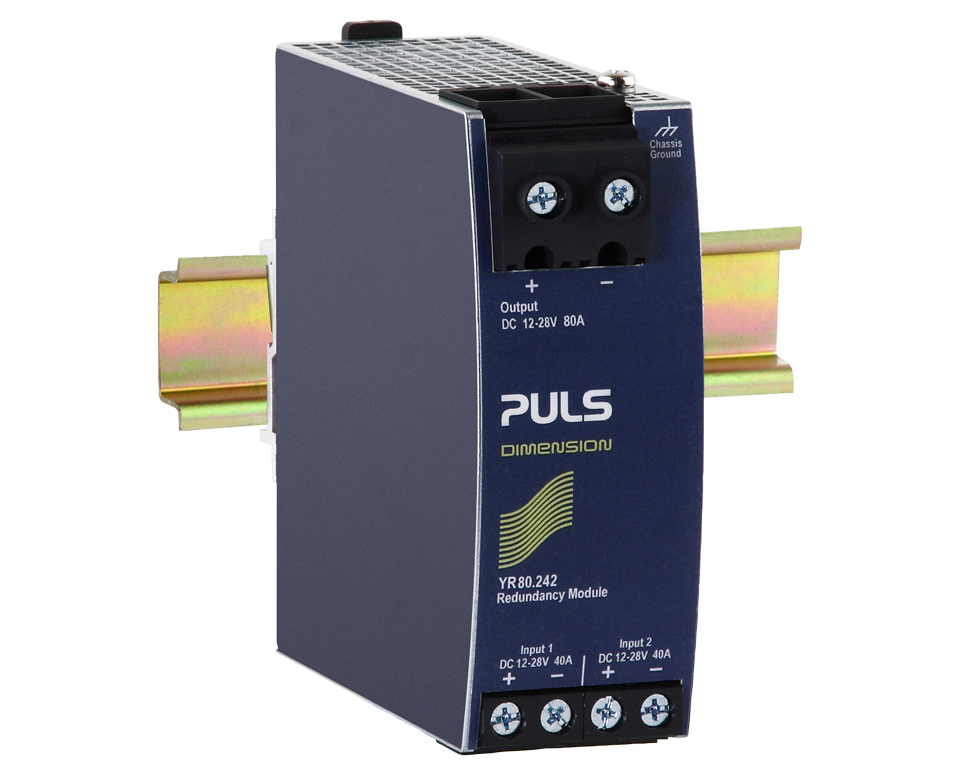

MOSFET redundancy module
24 V, 80 A
2x 40A input
DC output 12 - 28 Vdc
80 A
Input DC 12 V - 28 V
Dimensions (WxHxD) 46 x 124 x 127 mm
Weight 370 g

Input data

Input current 2 x 40 A
Nominal current per input 40 A
DC Input voltage DC 12 V - 28 V
Voltage drop 65 mV

Output data

Output current range 80 A
Output current 80 A
Output current short circuit max. 44 A
Derating 2 W/°C for >+60 °C


Dimensions (WxHxD) 46 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 370 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Screw terminals
Power losses, typ. 2.9 W
No-load losses, typ. 0.2 W
MTBF SN 29500 @ 40 °C (h) 2500000 h
