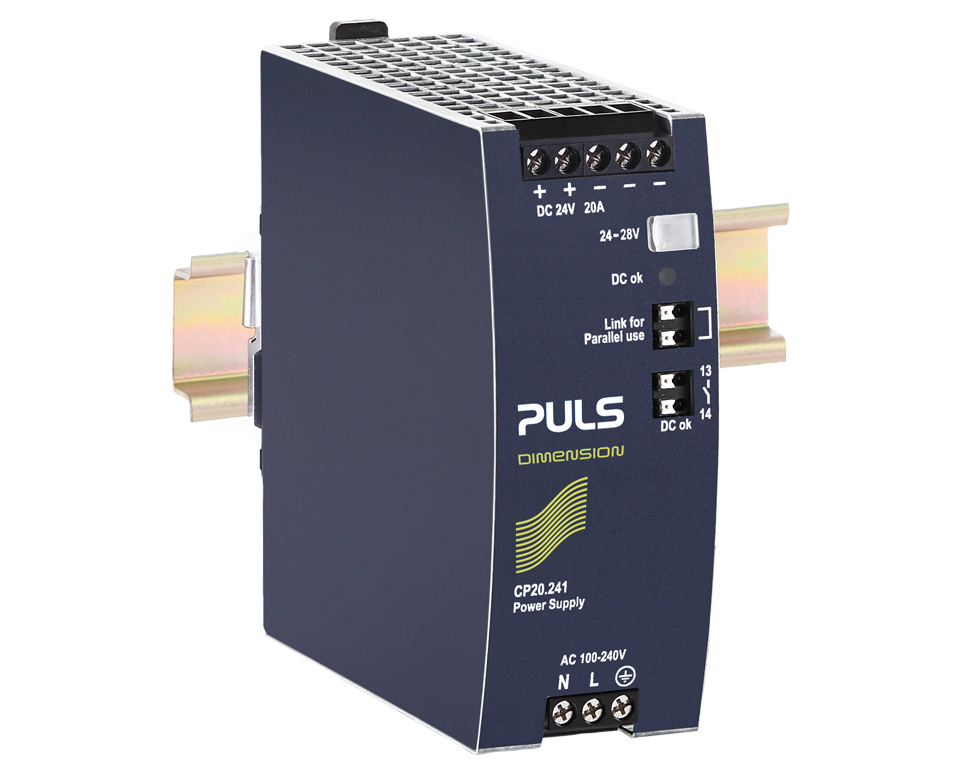

DIN rail power supplies for 1-phase system
24V, 20A
DC output 24 - 28Vdc
20 - 17.1A
Input AC 100 - 240V (-15%/+10%)
DC 110V - 150V (± 20%)
Dimensions (WxHxD) 48 x 124 x 127mm
Weight 830g

Input data

AC Input voltage AC 100 - 240V (-15%/+10%)
DC Input voltage DC 110V - 150V (± 20%)
Harmonic correction active
Power factor 0.98
Input inrush current limitation active
Input inrush current 10A / 4.5A
External input fuse recommendation B-10A / C-10A

Output data

Nominal voltage 24Vdc
Adjustment range 24 - 28V
Output current range 20 - 17.1A
Output current 17.1A at 28V
20A at 24V
Output power 480W
Power reserves 20% Power Boost
Derating 12W/°C for >60°C
Ripple and noise voltage max. 50mVpp


Dimensions (WxHxD) 48mm x 124mm x 127mm
Weight per unit (excl. packaging) 830g
Mounting method DIN rail
Operating temp. range -25°C to 70°C
Connection method Screw terminals
Efficiency, typ. 95.6%
Power losses, typ. 22.1W
MTBF SN 29500 @ 40°C (h) 590000h
DC-OK signal yes
